Description
Brand - ZEN
Item Number - GAKR14-PW ZEN
Category - Rod Ends

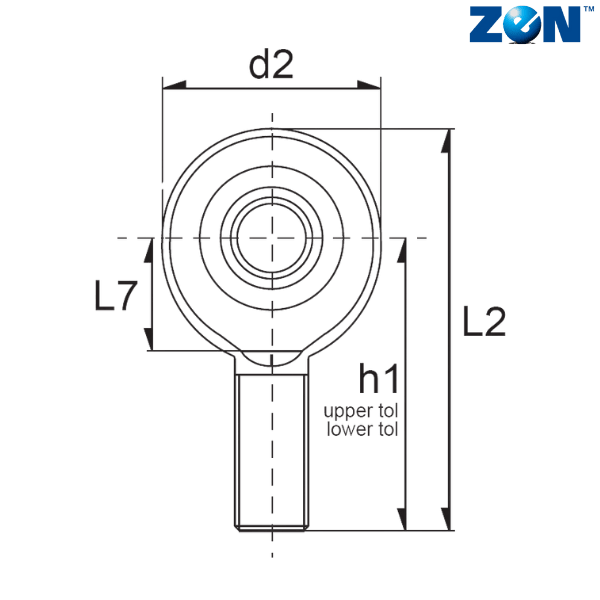

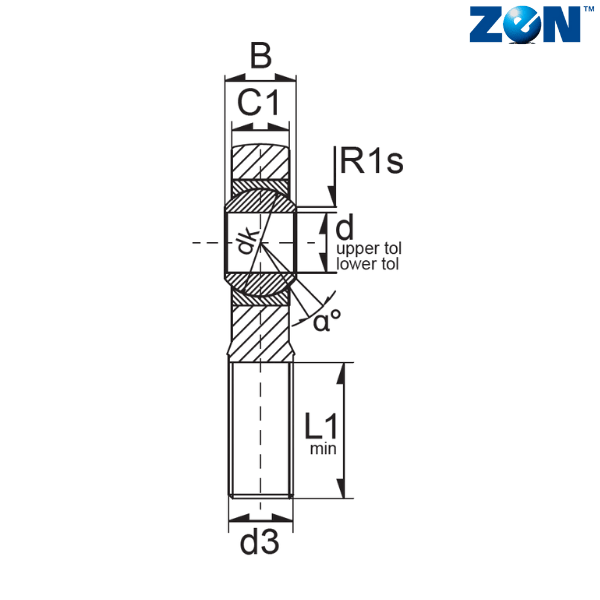

d (mm) - 14
d2 (mm) - 36
L2 (mm) - 78
B (mm) - 19
C1 (mm) - 13.5
D (mm) - 28
d1 (mm) - 16.9
d3 - M14
Dk (mm) - 25.4
h (mm) - 60
L1 (mm) - 36
L7 (mm) - 18
R1 (mm) - 0.3
α - 16
Weight (kg) - 0.16
Dynamic Load Rating (N) - 27900
Static Load Rating (N) - 28800
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
