Description
Brand - ZEN
Item Number - GAKR12-PW ZEN
Category - Rod Ends

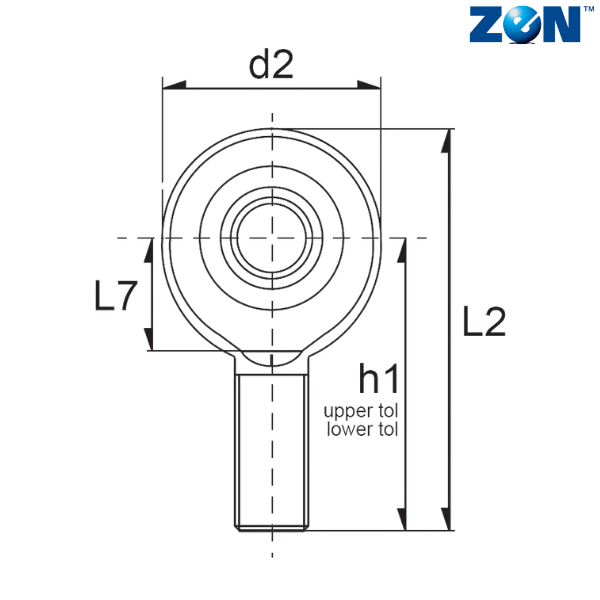

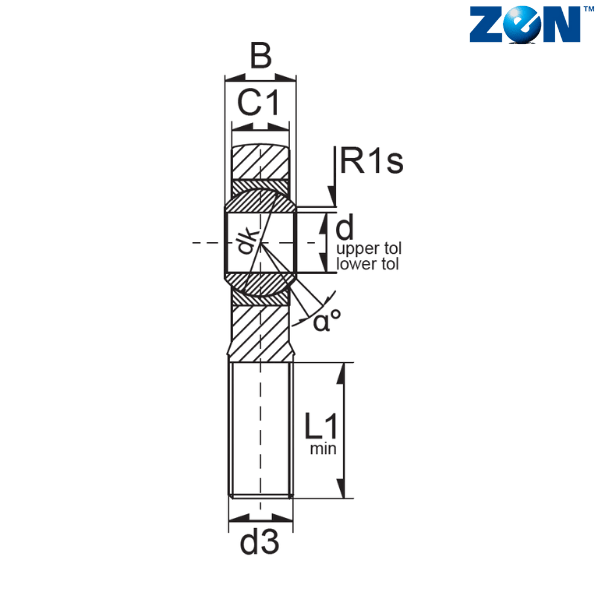

d (mm) - 12
d2 (mm) - 32
L2 (mm) - 70
B (mm) - 16
C1 (mm) - 12
D (mm) - 26
d1 (mm) - 15.4
d3 - M12
Dk (mm) - 22.225
h (mm) - 54
L1 (mm) - 32
R1 (mm) - 0.3
α - 13
Weight (kg) - 0.11
Dynamic Load Rating (N) - 21600
Static Load Rating (N) - 18720
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
