Description
Brand - ZEN
Item Number - GAKL20-PB ZEN
Category - Rod Ends

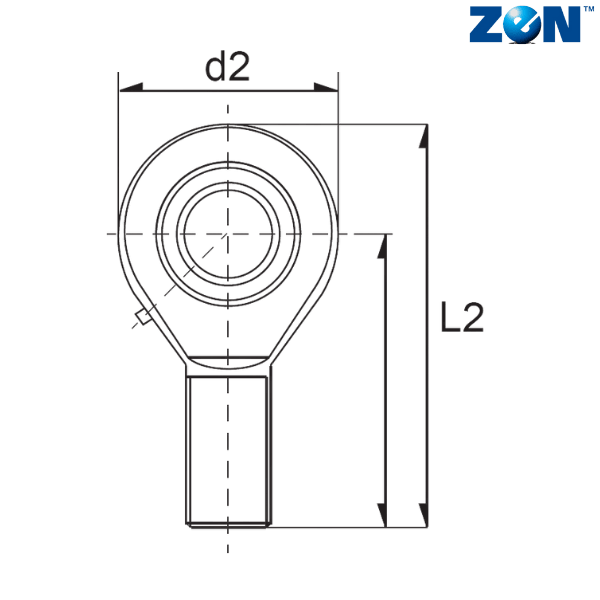

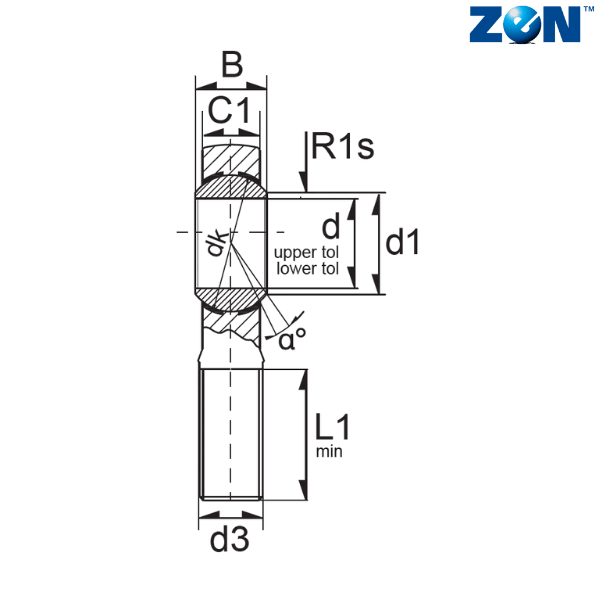

d (mm) - 20
d2 (mm) - 50
L2 (mm) - 103
B (mm) - 25
C1 (mm) - 18
D (mm) - 40
d1 (mm) - 24.3
d3 - M20X1.5
Dk (mm) - 34.925
h (mm) - 78
L1 (mm) - 45
L7 (mm) - 26
R1 (mm) - 0.3
α - 14
Weight (kg) - 0.38
Dynamic Load Rating (N) - 28260
Static Load Rating (N) - 41040
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
