Description
Brand - ZEN
Item Number - GAKL10-PW ZEN
Category - Rod Ends

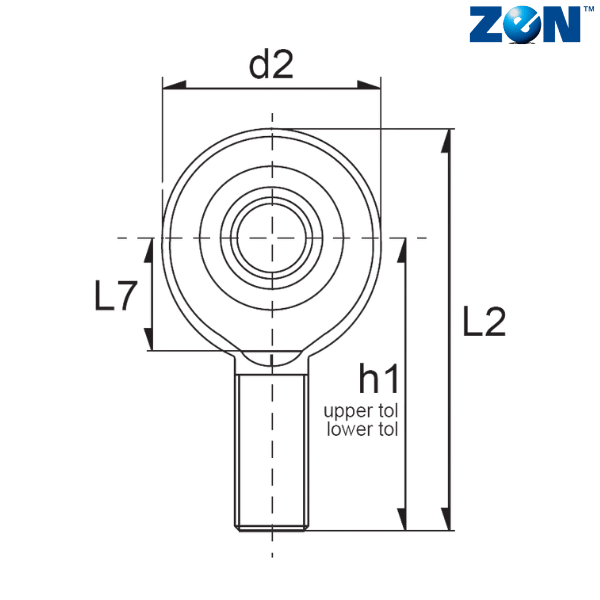

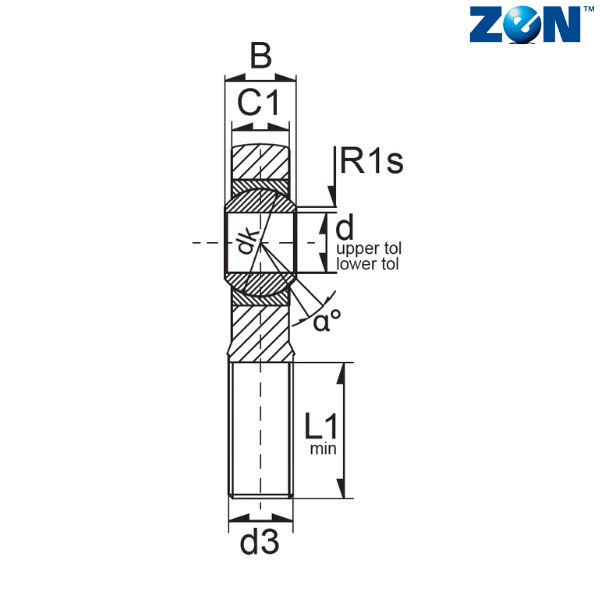

d (mm) - 10
d2 (mm) - 28
L2 (mm) - 62
B (mm) - 14
C1 (mm) - 10.5
D (mm) - 22
d1 (mm) - 12.9
d3 - M10x1.5
Dk (mm) - 19.05
h (mm) - 48
L1 (mm) - 28
R1 (mm) - 0.3
α - 13
Weight (kg) - 0.055
Dynamic Load Rating (N) - 16290
Static Load Rating (N) - 16650
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
