GA100XP0 RBC

Brand - RBC
Item Number - GA100XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

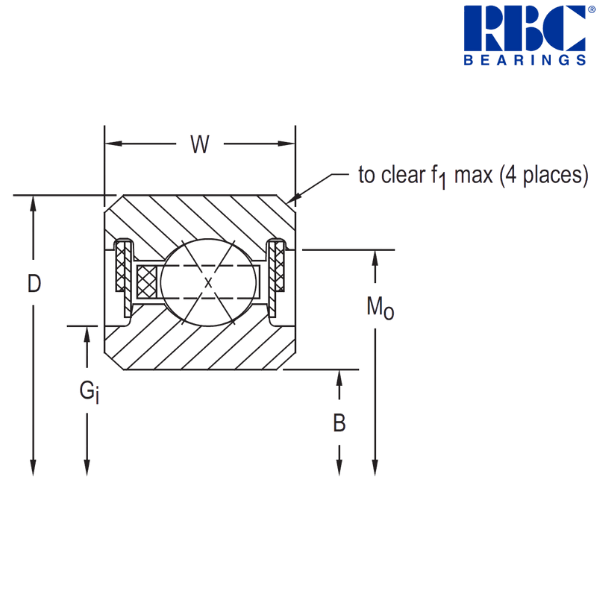

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 10.5 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 10.125 inch
Groove Diameter (Mo) - 10.343 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 123 pcs.
Approximate Weight - 0.5 lbs
Radial Static Load - 3110 lbf
Radial Dynamic Load - 1289 lbf
Thrust Static Load - 7780 lbf
Thrust Dynamic Load - 2180 lbf
Moment Static Load - 15940 lbf
Moment Dynamic Load - 4956 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 254 mm
Outside Diameter (D) - 266.7 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 257.18 mm
Groove Diameter (Mo) - 262.71 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.227 kg
Radial Static Load - 13830 N
Radial Dynamic Load - 5730 N
Thrust Static Load - 34610 N
Thrust Dynamic Load - 9700 N
Moment Static Load - 1800 Nm
Moment Dynamic Load - 560 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
A - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
