GA025CP0 RBC

Brand - RBC
Item Number - GA025CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

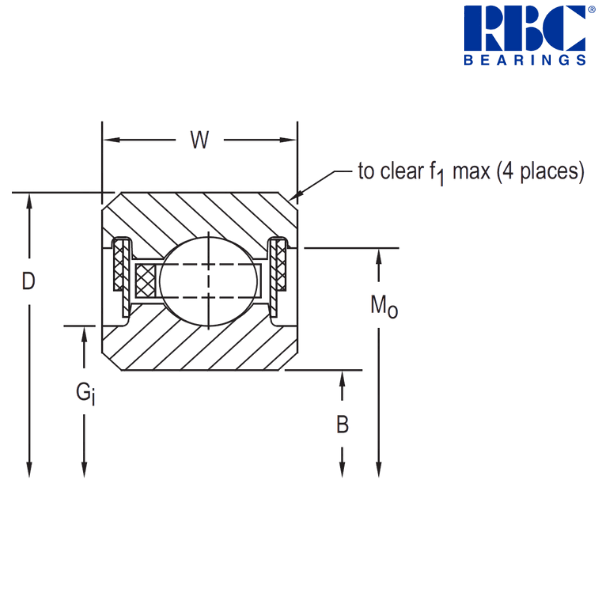

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2.5 inch
Outside Diameter (D) - 3 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 2.625 inch
Groove Diameter (Mo) - 2.843 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 33 pcs.
Approximate Weight - 0.13 lbs
Radial Static Load - 830 lbf
Radial Dynamic Load - 610 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 63.5 mm
Outside Diameter (D) - 76.2 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 66.68 mm
Groove Diameter (Mo) - 72.21 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.059 kg
Radial Static Load - 3692 N
Radial Dynamic Load - 2710 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
