Description
Brand - INA
Item Number - G5208-2RS-N-C3 INA
Category - Angular Contact Ball Bearing Double Row
Also known as - 8873740030
Inner (d) MM - 40
Outer (D) MM - 80
Width (B) MM - 38
Inner (d) Inch - 1.5748
Outer (D) Inch - 3.1496
Width (B) Inch - 1.4961
Weight (kg) - 0.7
Bore - C - Cylindrical Bore
Seal - 2RS - Rubber Seal on Two Sides
Cage Type - S - Steel or Standard Cage
External Modification - N - Snap Ring Groove in Outer Ring
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring - Standard

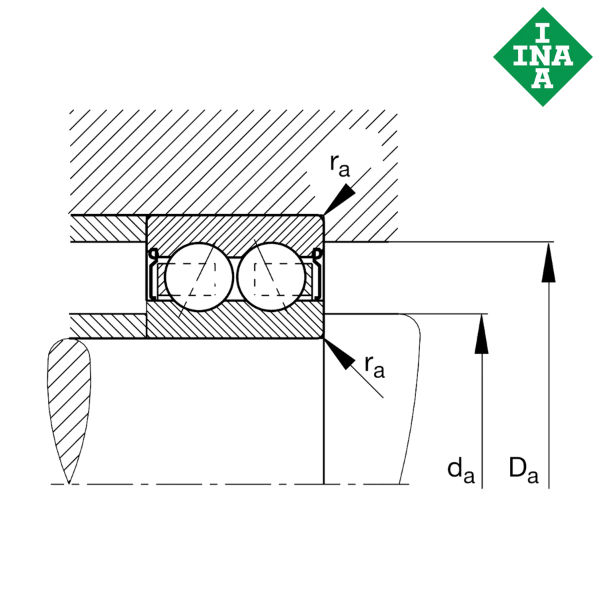

** Images are for representation purposes only
