Description
Brand - INA
Item Number - G5206 2RS NR C3 INA
Category - Angular Contact Ball Bearing Double Row
Inner (d) MM - 30
Outer (D) MM - 62
Width (B) MM - 32/34
Weight (kg) - 0.4
Bore - C - Cylindrical Bore
Seal - 2RS - Rubber Seal on Two Sides
Cage Type - S - Steel or Standard Cage
External Modification - NR - Groove and Snap Ring
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring - Standard

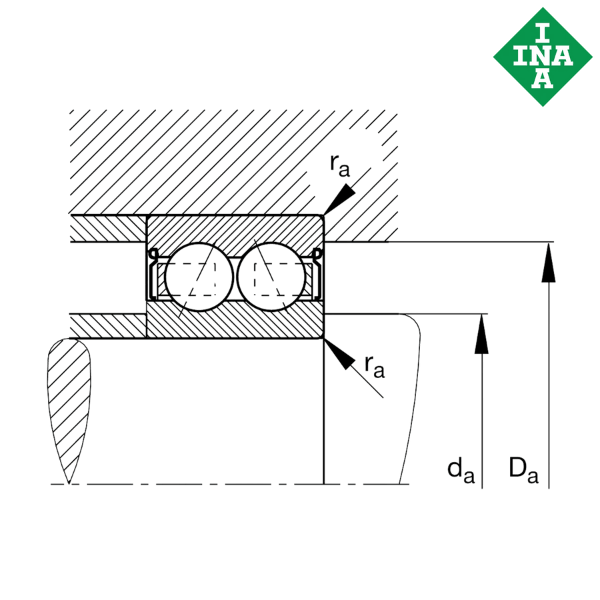

** Images are for representation purposes only
