FXRW 290 - 96 LX RINGSPANN


Download Data Sheet
Country Of Origin: GERMANY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Description

Brand - RINGSPANN
Part Number - FXRW 290 - 96 LX RINGSPANN
Category - Integrated Freewheels FXRW

Principal Dimensions & Specifications (Metric):
Maximum Bore Diameter (d) - 230 mm
Dimension (A) - 850 mm
Dimension (B) - 340 mm
Dimension (C) - 8 mm
Dimension (D) - 735 mm
Thread (G) ** - M 24
Dimension (H) - 127 mm
Dimension (K) - 140 mm
Dimension (L) - 120 mm
Dimension (O) - 302 mm
Dimension (R) - 730 mm
Dimension (S) - 330 mm
Dimension (T) - 800 mm
Minimum Dimension (U) *** - 405 mm
Maximum Dimension (U) *** - 730 mm
Dimension (V) - 65 mm
Number of Fastening Holes (Z) ** - 12
Weight - 852 kg
Slipping Torque (MR) - 90000 Nm
Sprag Lift-off at Inner Ring Speed - 200 RPM
Maximum Speed of Inner Ring Freewheels - 2250 RPM

Other salient points to be noted:
* Keyway according to DIN 6885
** Z = Number of fastening holes for screws G on pitch circle T
*** Area for O-ring sealing

Features:

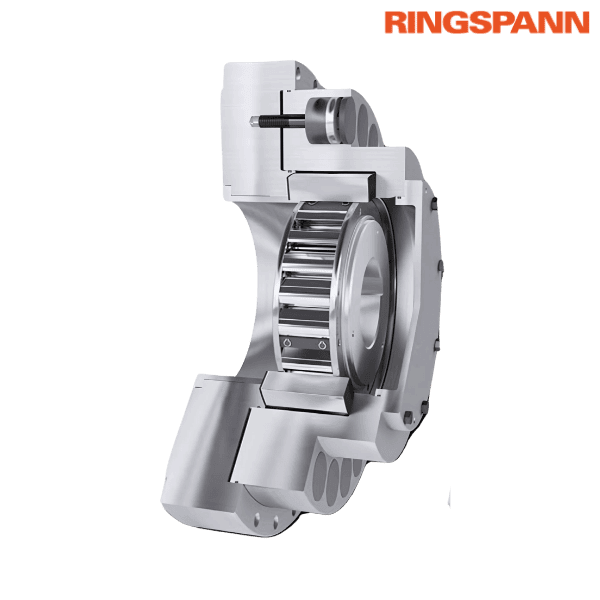

• Integrated Freewheels FXR are sprag-type freewheels without built-in bearing support, featuring sprag lift-off design (X)
• They are based on the FXM series (refer to pages 58–63) but include an additional integrated torque limiter
• The sprag lift-off mechanism ensures no contact during high-speed inner ring rotation, resulting in wear-free operation
• Upon stoppage, the full backdriving torque often gets concentrated on a single backstop, which can overload it

Application as: Backstop (For continuous conveyor systems that use multiple drives, each fitted with its own backstop)

Torques:
• Integrated Freewheels FXRW come with a factory-set slipping torque value (MR) in the torque limiter
• The system’s static backdriving torque (ML), including during overload, must never exceed the combined MR values of all FXRW freewheels used
• The MR values listed in technical tables represent maximum permissible limits

Mounting:
• Integrated Freewheels FXRW do not include internal bearing support
• Total Indicated Runout (T.I.R.) between the pilot diameter (R) and shaft diameter (d) must not exceed 0.25 mm
• Dimension C refers to the freewheel's centering depth; the customer’s attachment part must have a minimum centering depth of C + 0.2 mm
• Pilot diameter (R) of the attachment part must be to ISO H7 tolerance
• Shaft diameter must be to ISO h6 or j6 tolerance

♦ ♦ Images are for representation purposes only
