Description
Brand - RINGSPANN
Part Number - FXN 38 - 17/70 NX RINGSPANN
Category - Internal Freewheels FXN

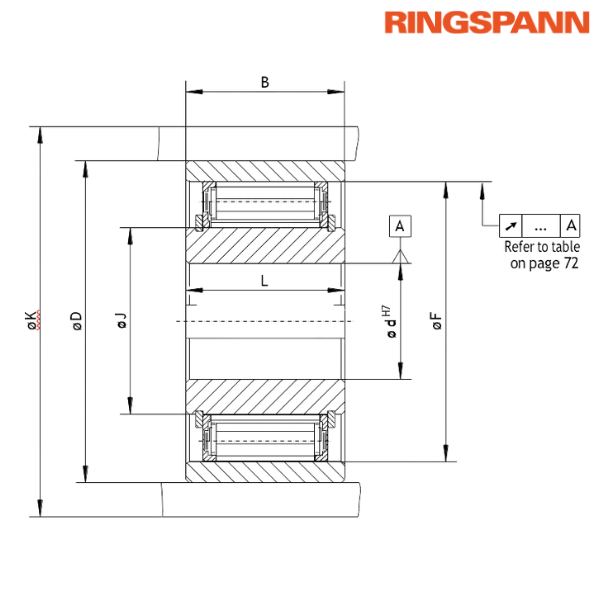

Principal Dimensions & Specifications (Metric):
Standard Bore Diameter (d) * - 25 mm
Maximum Bore Diameter (d) - 25* mm
Dimension (B) - 25 mm
Dimension (D) - 70 P6 mm
Dimension (F) - 62 mm
Dimension (J) - 38 mm
Minimum Dimension (K) - 90 mm
Dimension (L) - 24 mm
Weight - 0.4 kg
Theoretical nominal torque (A) - 180 Nm
Nominal Torque at Existing Run Out [0.1] T.I.R. (A) - 170 Nm
Nominal Torque at Existing Run Out [0.2] T.I.R. (A) - 160 Nm
Nominal Torque at Existing Run Out [0.3] T.I.R. (A) - 150 Nm
Sprag Lift-off at Inner Ring Speed - 860 RPM
Maximum Speed of Inner Ring Freewheels/ Overruns - 5000 RPM
Maximum Speed of Outer Ring Drives - 224 RPM
Other salient points to be noted:
* Keyway according to DIN 6885
The maximum transmissible torque is 2 times the specified nominal torque
The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring
Features:
• Sprag freewheels without bearing support, equipped with sprag lift-off X)
• Sprag lift-off X allows wear-free freewheeling when the inner ring rotates at high speeds
• The outer ring is pressed into the customer’s housing, enabling a compact and space-efficient design
• Nominal torque capacity: Up to 20,500 Nm
• Bore sizes: Available up to 130 mm
Application as:
• Backstop (For application as backstop in installations with high speeds in freewheeling operation)
• Overrunning Clutch (For application as overrunning clutch in instal- lations with low speeds in driving operation)
Mounting:
• Concentric alignment of the inner and outer rings must be ensured by the customer
• The permissible run out (T.I.R.) must be strictly followed for proper functioning
• Torque is transmitted via press fit on the outer ring
• The outer ring must be installed in a housing with external diameter K as per specification
• Housing material must be steel or grey cast iron (minimum grade GG-20)
• For other materials or smaller diameters, consult the manufacturer regarding torque capacity
• Shaft tolerance must be ISO h6 or j6
♦ ♦ Images are for representation purposes only
