FWS 52 NADELLA

Brand - NADELLA
Item Number - FWS 52 NADELLA

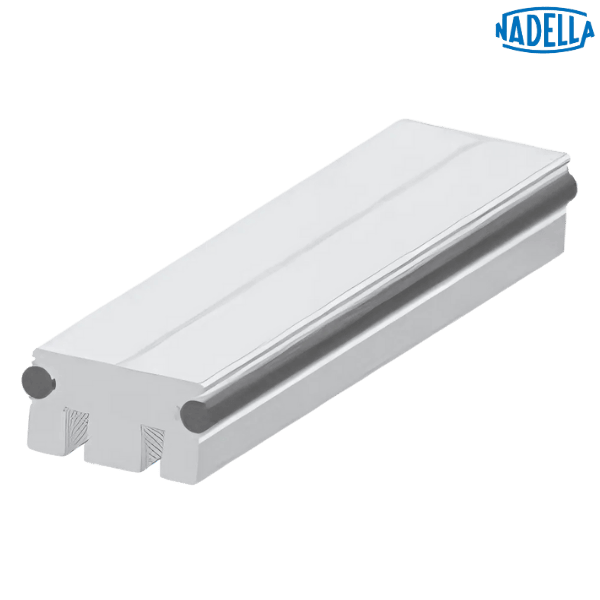

Category - Rail composed by an Aluminium Body and Two Shafts in Steel, with Two Raceways

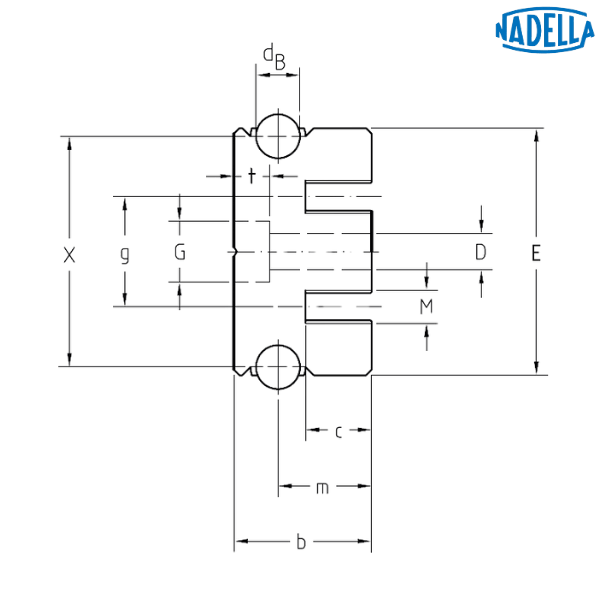

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 12 mm
Dimension (a) - 66 mm
Dimension (M) - M10
Dimension (g) - 32 mm
Dimension (E) - 69 mm
Dimension (b) - 36 mm
Dimension (m) - 24 mm
Dimension (c) - 18 mm
Dimension (l) - 150 mm
Dimension (l1) - 30 mm
Reduction (G) - 18 mm
Reduction (D) - 11 mm
Reduction (t) - 11 mm
Maximum Screw Distance for 2 Screw Channels - 250 mm
Torque Wrench Settings - 23 Nm
Distance for Additional Holes (NZ) - 280 mm
Moments of Inertia* (Jx) - 22.85 cm⁴
Moments of Inertia* (Jy) - 74.12 cm⁴
Weight - 7.2 kg/m

Description of Prefix:
FWS - Rail composed by an aluminium body and two shafts in steel, with two raceways for Base-Line system

Other salient points to be noted:
* Inertia value based on equivalent aluminium yield 70000 N/mm² including shafts

• Maximum length in single element L = 4500 mm
• Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Stainless steel shafts (NX)
• Chromium plated shafts (CH)
• Pin based shaft connection (G)

Standard Designation Examples:
FW S32 / 650
FW S32 / 1500
FW S32 / 2600
FW S32 / 4250

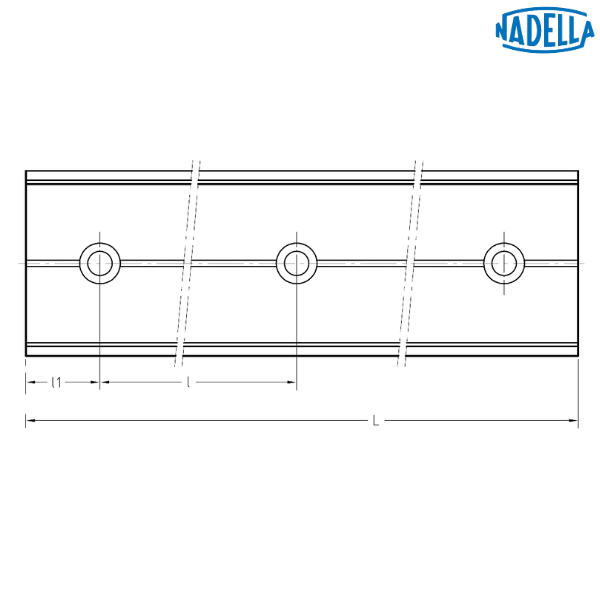

Hole Layout:
• For Holes according to catalogue, Suffix will be SB, e.g. FW S32 / 1500 SB
• For Finishes to drawing, Suffix will be NZ, e.g. FW S32 / 1500 NZ
• For Without holes, Suffix will be NF, e.g. FW S32 / 1500 NF
