FWN 25 NADELLA

Brand - NADELLA
Item Number - FWN 25 NADELLA

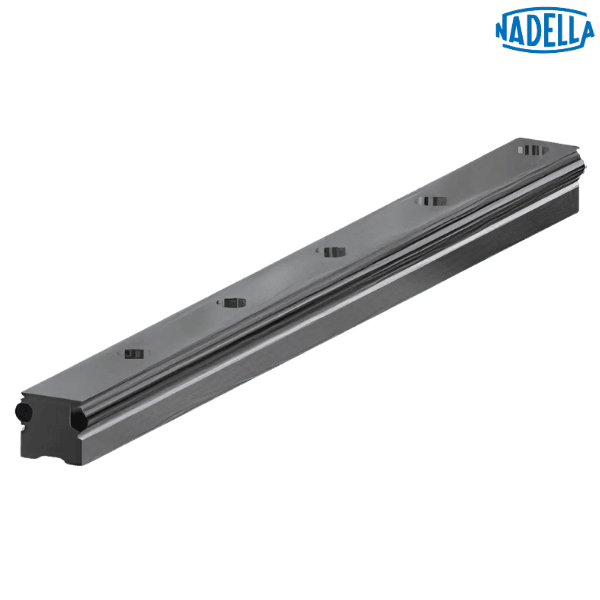

Category - Guide Rail composed by an Aluminium Body and Two Shafts in Steel, with Two Raceways

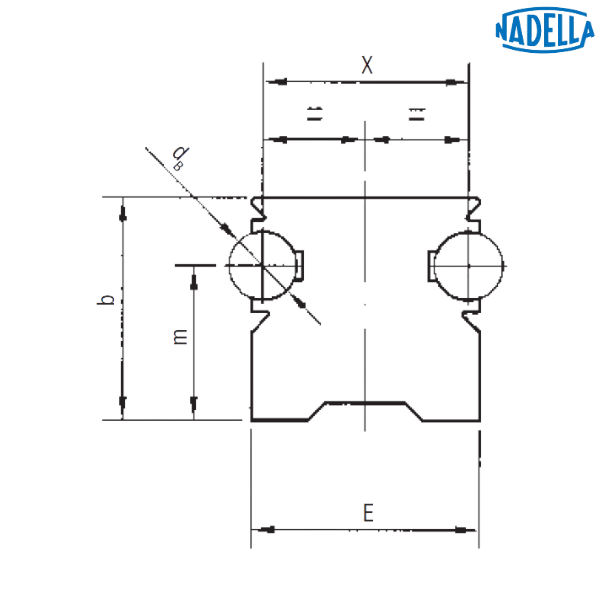

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 6 mm
Dimension (E) - 23 mm
Dimension (X) - 21 mm
Dimension (D) - 11 mm
Dimension (d) - 6.6 mm
Dimension (G) - M6
Dimension (g) - 12 mm
Dimension (m) - 18 mm
Dimension (t) - 8.5 mm
Dimension (b) - 25.5 mm
Dimension (l1) - 30 mm
Dimension (l) - 60 mm
Weight - 1.8 kg/m

Description of Prefix:
FWN - Rail composed by an aluminium body and two shafts in steel, with two raceways for Flexi-Line 645 system

Other salient points to be noted:
• Maximum length in single element L = 5800 mm
• Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Stainless steel shafts (NX)
• Chromium plated shafts (CH)
• Pin based shaft connection (G)

Standard Designation Examples:
FWN 20 / 650
FWN 20 / 1500
FWN 20 / 2600
FWN 20 / 4250

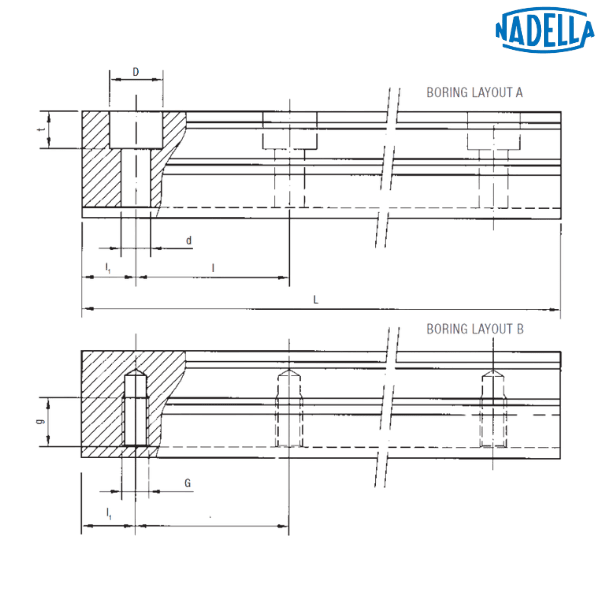

Hole Layout:
• For Holes according to DIN, Suffix will be A or B, e.g. FWN 20 / 1500 A, FWN 20 / 1500 B
• For Finishes to drawing, Suffix will be NZ, e.g. FWN 20 / 1500 NZ
• For Without holes, Suffix will be NF, e.g. FWN 20 / 1500 NF

♦ ♦ Images are for representation purposes only
