FWH 52 NADELLA

Brand - NADELLA
Item Number - FWH 52 NADELLA

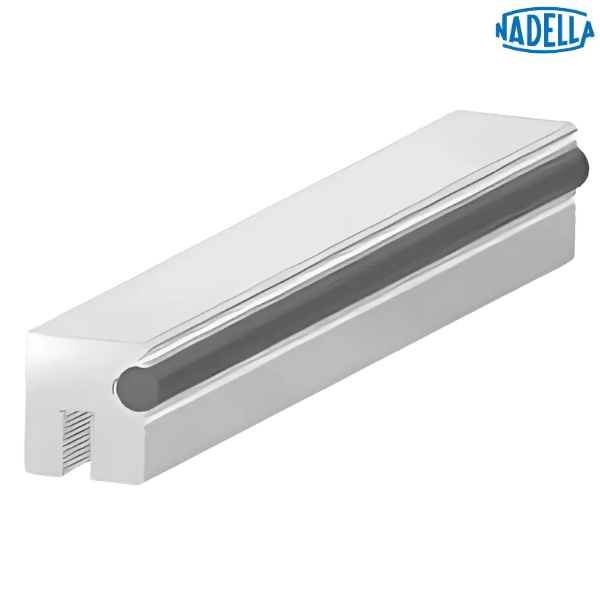

Category - Rail composed by an Aluminium Body and One Shaft in Steel, with a Single Raceway

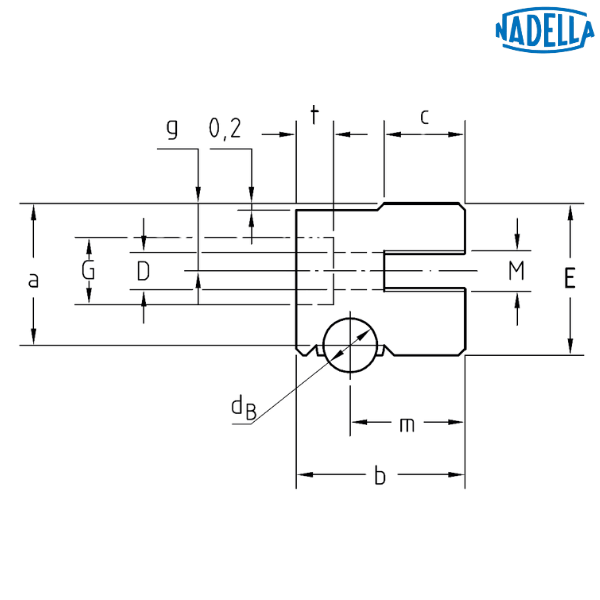

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 12 mm
Dimension (a) - 33 mm
Dimension (M) - M10
Dimension (g) - 16 kg
Dimension (E) - 34.5 mm
Dimension (b) - 36 mm
Dimension (m) - 24 mm
Dimension (c) - 18 mm

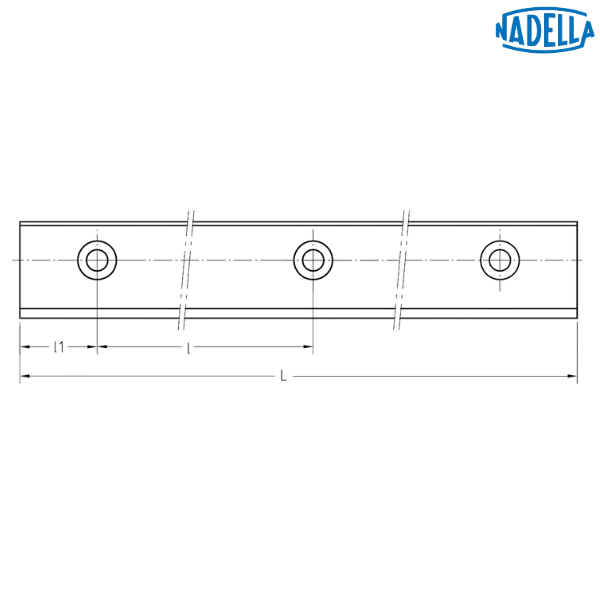

Dimension (l) - 150 mm
Dimension (l1) - 30 mm
Reduction (G) - 15 mm
Reduction (D) - 9 mm
Reduction (t) - 9 mm
Maximum Screw Distance for 1 Screw Channel - 120 mm
Torque Wrench Settings - 23 Nm
Distance for Additional Holes - 150 mm
Moments of Inertia* (Jx) - 10.12 cm⁴
Moments of Inertia* (Jy) - 11.85 cm⁴
Weight - 3.6 kg/m

Description of Prefix:
FWH - Rail composed by an aluminium body and one shaft in steel, with a single raceway for Base-Line system

Other salient points to be noted:
* Inertia value based on equivalent aluminium yield 70000 N/mm² including shafts

• Maximum length in single element L = 4500 mm
• Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Stainless steel shafts (NX)
• Chromium plated shafts (CH)
• Pin based shaft connection (G)

Standard Designation Examples:
FWH 32 / 650
FWH 32 / 1500
FWH 32 / 2600
FWH 32 / 4250

Hole Layout:
• For Holes according to catalogue, Suffix will be SB, e.g. FWH 32 / 1500 SB
• For Finishes to drawing, Suffix will be NZ, e.g. FWH 32 / 1500 NZ
• For Without holes, Suffix will be NF, e.g. FWH 32 / 1500 NF
