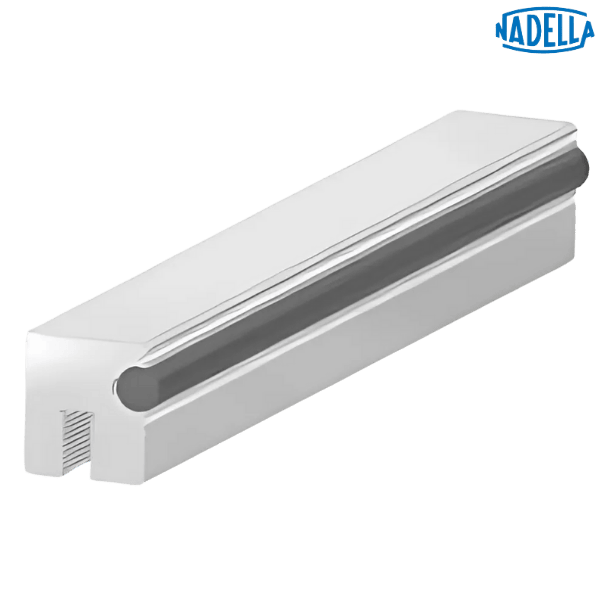

FWH 22 NADELLA

Brand - NADELLA
Item Number - FWH 22 NADELLA
Category - Rail composed by an Aluminium Body and One Shaft in Steel, with a Single Raceway

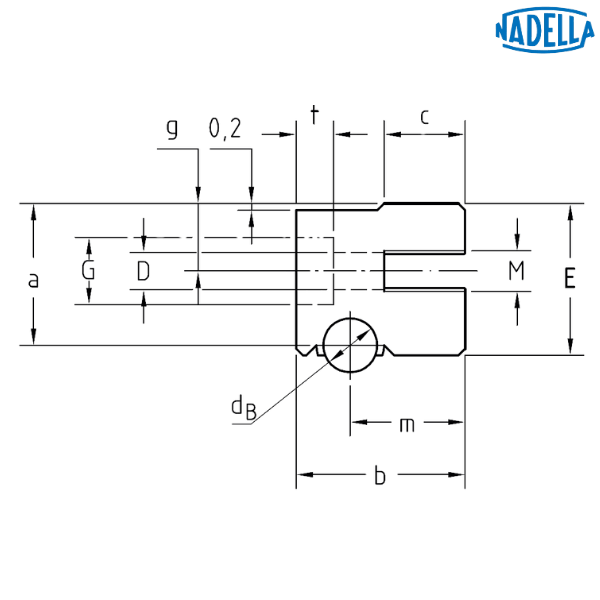

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 6 mm
Dimension (a) - 17 mm
Dimension (M) - M5
Dimension (g) - 8 kg
Dimension (E) - 18 mm
Dimension (b) - 20 mm
Dimension (m) - 14 mm
Dimension (c) - 10 mm
Dimension (l) - 120 mm
Dimension (l1) - 30 mm
Reduction (G) - 8 mm
Reduction (D) - 4.5 mm
Reduction (t) - 4.5 mm
Maximum Screw Distance for 1 Screw Channel - 70 mm
Torque Wrench Settings - 2 Nm
Distance for Additional Holes - 120 mm
Moments of Inertia* (Jx) - 1.02 cm⁴
Moments of Inertia* (Jy) - 0.83 cm⁴
Weight - 1 kg/m

Description of Prefix:
FWH - Rail composed by an aluminium body and one shaft in steel, with a single raceway for Base-Line system

Other salient points to be noted:
* Inertia value based on equivalent aluminium yield 70000 N/mm² including shafts

• Maximum length in single element L = 4500 mm
• Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Stainless steel shafts (NX)
• Chromium plated shafts (CH)
• Pin based shaft connection (G)

Standard Designation Examples:
FWH 32 / 650
FWH 32 / 1500
FWH 32 / 2600
FWH 32 / 4250

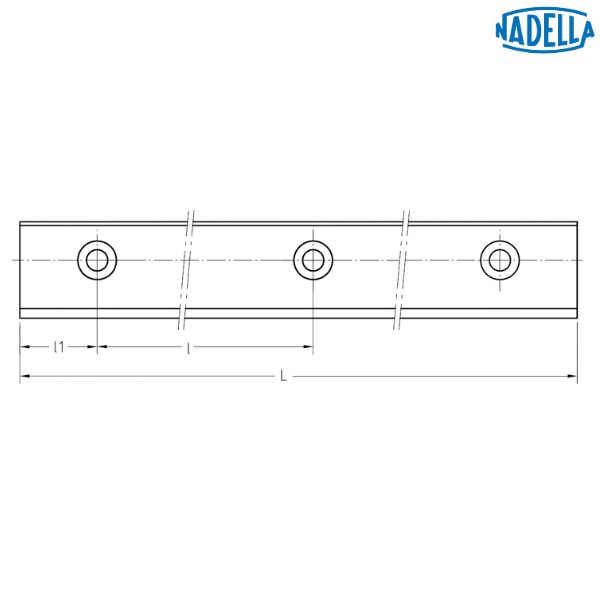

Hole Layout:
• For Holes according to catalogue, Suffix will be SB, e.g. FWH 32 / 1500 SB
• For Finishes to drawing, Suffix will be NZ, e.g. FWH 32 / 1500 NZ
• For Without holes, Suffix will be NF, e.g. FWH 32 / 1500 NF

♦ ♦ Images are for representation purposes only
