Description
Brand - RBC
Item Number - FTRY 1 3/4 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Ball Bearing (BB)

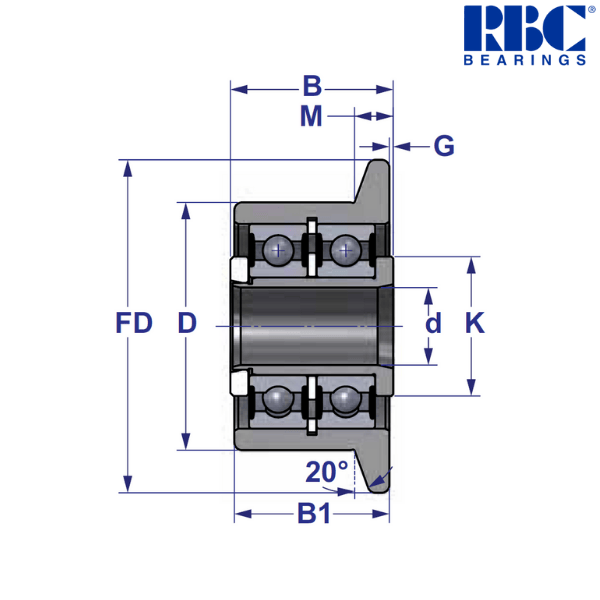

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 1.75 inch
Width (B1) - 1 inch
Bore Diameter (d) - 0.5 (+.0005 to -.0000) inch
Overall Width (B) - 1.063 (+.005 to -.010) inch
Flange Diameter (FD) - 2.438 inch
Groove Location (M) - 0.25 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 1 inch
Dynamic Radial Load - 1850 lbs
Static Thrust Load - 480 lbs
Static Radial Load - 780 lbs
Equivalent Part Number in OSBORN - FLRY 1 - 3/4

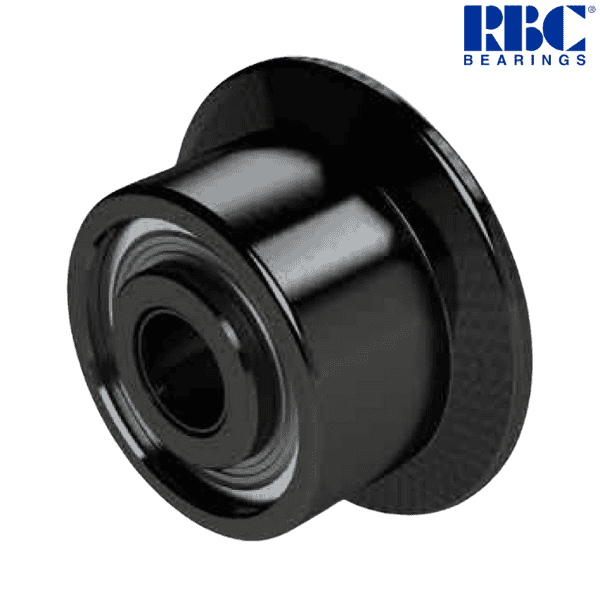

♦ ♦ Images are for representation purposes only
Item Number - FTRY 1 3/4 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Ball Bearing (BB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 1.75 inch
Width (B1) - 1 inch
Bore Diameter (d) - 0.5 (+.0005 to -.0000) inch
Overall Width (B) - 1.063 (+.005 to -.010) inch
Flange Diameter (FD) - 2.438 inch
Groove Location (M) - 0.25 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 1 inch
Dynamic Radial Load - 1850 lbs
Static Thrust Load - 480 lbs
Static Radial Load - 780 lbs
Equivalent Part Number in OSBORN - FLRY 1 - 3/4
♦ ♦ Images are for representation purposes only
