FTR 7 RBC

Brand - RBC
Item Number - FTR 7 RBC
Category - Track Runner (Flanged Track Rollers)
Inside Bearing Type - Tapered Roller Bearing (TRB)

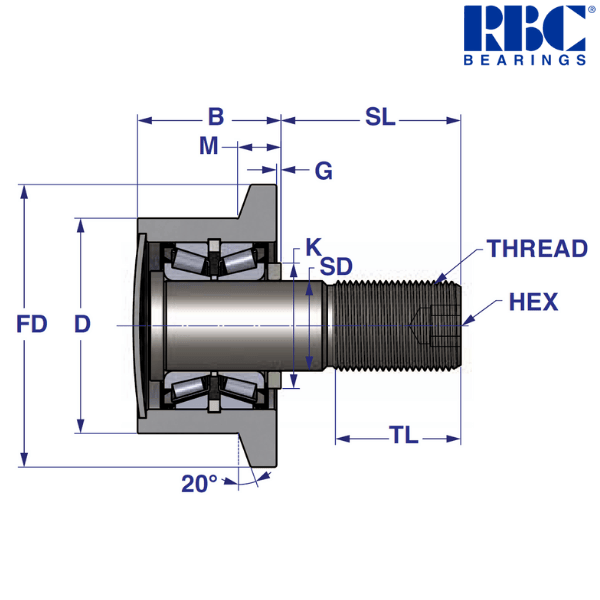

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 7 (+.000 to -.001) inch
Width of Roller (B) - 3 inch
Shank Diameter (SD) - 2.5 (+.000 to -.001) inch
Shank Length (SL) - 5.5 inch
Minimum Eff. Length Thread Length (TL) - 3.25 inch
Thread Class 2A - 2 1/2-12
Hex - 0.625 inch
Shoulder Diameter (K) - 3.25 inch
Shoulder Length (G) - 0.062 inch
Flange Thickness (M) - 0.718 inch
Flange Diameter (FD) - 7.938 inch
Dynamic Radial Load - 35840 lbs
Static Thrust Load - 33100 lbs
Static Radial Load - 56400 lbs
Equivalent Part Number in OSBORN - FLR 7
Equivalent Part Number in McGill - FCF 7

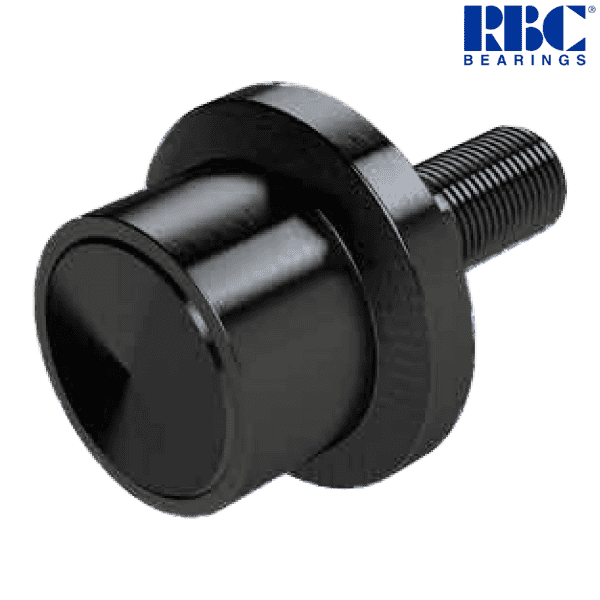

♦ ♦ Images are for representation purposes only
