Description

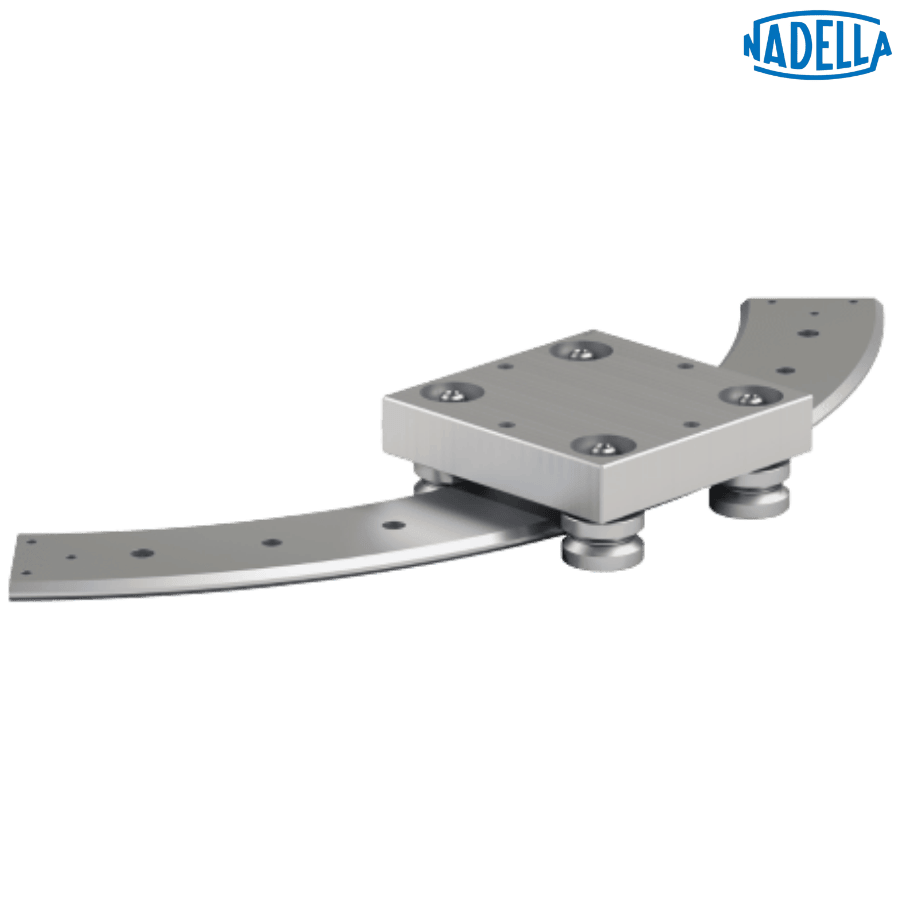

Brand - NADELLA
Item Number - FSRQ22 M 075 NADELLA
Category - Ring Circuit Composed of Linear and Circular Pieces of Rail
Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 22.5°
Dimension (I) - 45°
Dimension (f) - 45°
Radius (R) - 75 mm
Dimension (D) - 6.5 mm
Dimension (d) - 5 (H7) mm
Dimension (S) - 5 mm
Dimension (h) - 26 mm
Dimension (H) - 27.86 mm
Description of Suffixes and Prefixes:
FSRQ - Ring circuit composed of linear and circular pieces of rail for Multi-Motion-Line system
M - Ground profile
Other salient points to be noted:
• (1) The length of the straight pieces is higher than the distance between the centers K (1.6 mm x 2) in order to cover the thickness of rail lost during the cutting of the circular sectors (refer to the image)
Standard Hole Layout (SB) for the Straight Rails:
• First and last hole at 50 mm, starting from the centers K
• Hole pitch 90 mm
• Central hole (2) only if the last hole pitch (Wx in horizontal and Wy in vertical) is ≥ 120 mm, (Wx in horizontal and Wy in vertical) cannot be < 60 mm (refer to the image)
Rail Finishing:
• Circular rail FSR ... M
• Guide rail FS ... M
• Aligment blocks for FSR
Hole Layout:
• For Standard holes according to catalogue, Suffix will be SB, e.g. FSRQ 22 M 075 2600 1300 / SB
• For Finishes to drawing, suffix will be NZ, e.g. FSRQ 22 M 075 2600 1300 / NZ
Standard Designation Examples:
• FSRQ 22 M 075 760 380
• FSRQ 22 M 075 1050 525
• FSRQ 22 M 075 2000 1000
• FSRQ 22 M 075 3450 1725
• FSRQ 22 M 075 2000 1000
• Ring circuit, size 22, radius 075 mm, horizontal distance between the centers K equal to 2000 mm (1) , vertical distance between the centers K equal to 1000 mm (1) , standard holes. (refer to the image)
♦ ♦ Images are for representation purposes only
