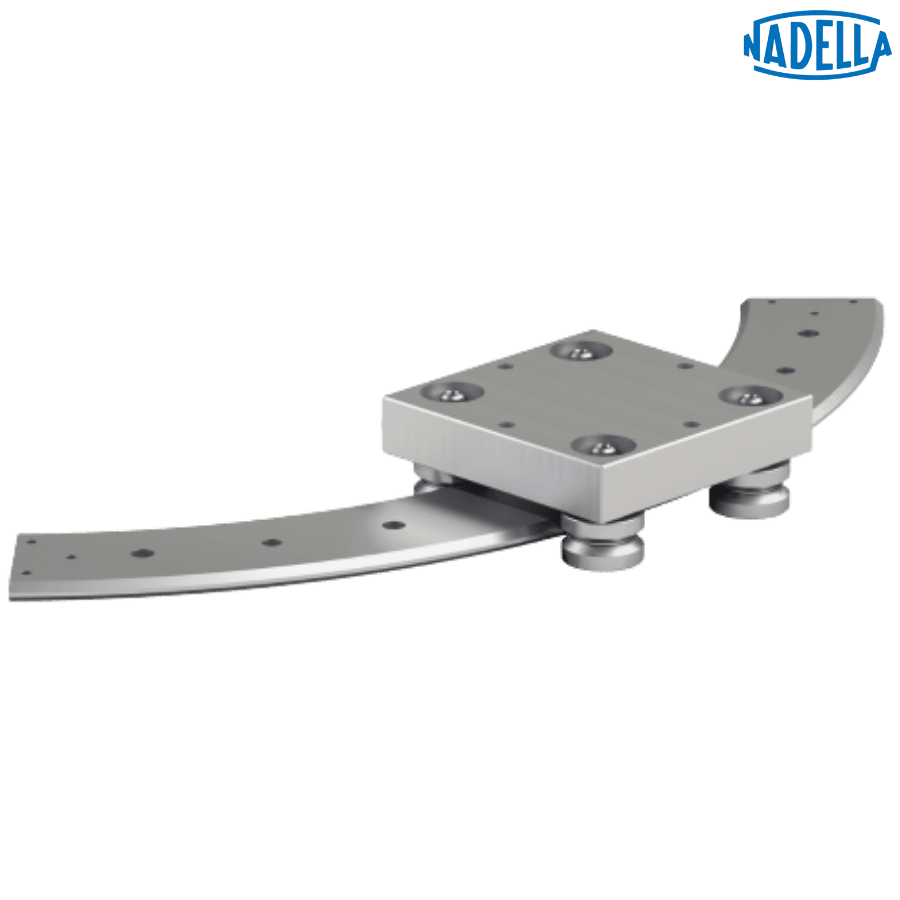

Description
Brand - NADELLA
Item Number - FSRO 22 M 175 NADELLA
Category - Oval Circuit Composed of Linear and Circular Pieces of Rail
Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 15°
Dimension (I) - 30°
Dimension (f) - 25°
Radius (R) - 175 mm
Dimension (D) - 6.5 mm
Dimension (d) - 5 (H7) mm
Dimension (S) - 5 mm
Dimension (h) - 26 mm
Dimension (H) - 27.86 mm
Description of Suffixes and Prefixes:
FSRO - Oval circuit composed of linear and circular pieces of rail for Multi-Motion-Line system
M - Ground Profile
Other salient points to be noted:

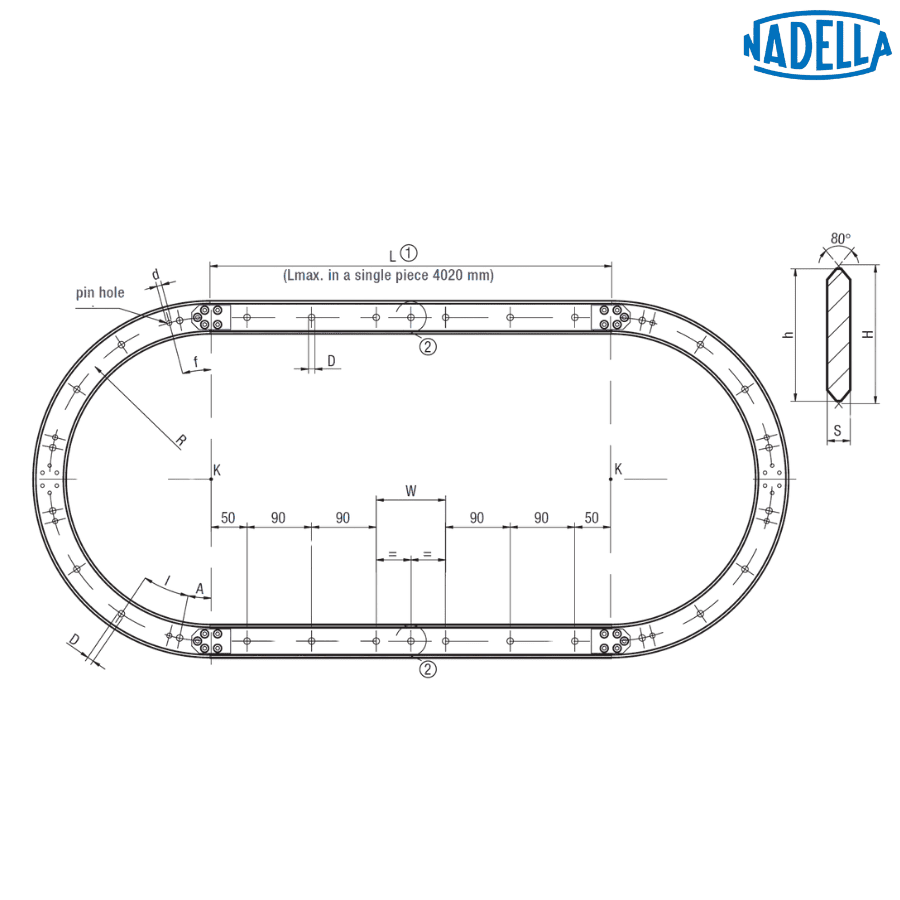

(1) The length of the straight pieces is higher than the distance between the centers K (1.6 mm x 2) in order to cover the thickness of rail lost during the cutting of the circular sectors (refer to the image)
Standard Hole Layout (SB) for the Straight Rails:
• First and last hole of 50 mm, starting from the centers K
• Hole pitch 90 mm
• Central hole (2) only if the last hole pitch W is ≥ 120 mm (refer to the image)
• The W pitch can not be less than 60 mm
Rail Finishing:
• Circular rail FSR ... M
• Guide rail FS ... M
• Aligment blocks for FSR
Hole Layout:
• For Standard holes according to catalogue, Suffix will be SB, e.g. FSRO 22 M 075 2600 SB
• For Finishes to drawing, Suffix will be NZ, e.g. FSRO 22 M 075 2600 NZ
• Oval circuit, size 22, radius 075 mm, distance between the centers K equal to 2600 mm 1 , standard holes
Optional Features:
• Stainless steel (NX)
• Nickel plating (NW)
Standard Designation Examples:
• FSRO 22 M 075 760
• FSRO 22 M 075 1050
• FSRO 22 M 075 2600
• FSRO 22 M 075 3450
