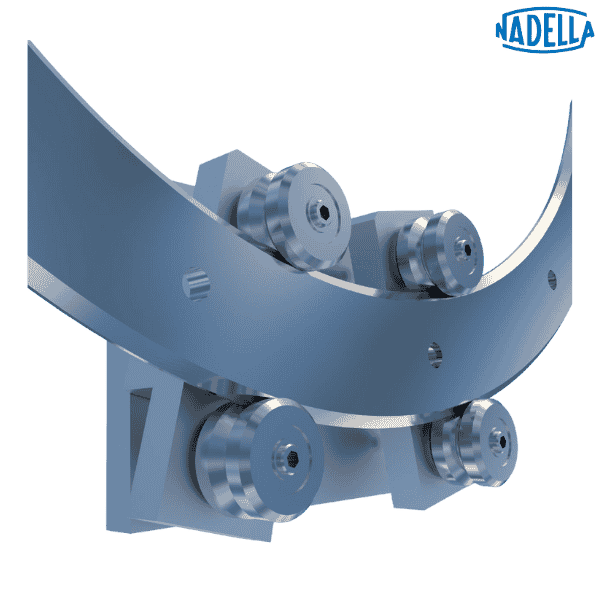

FSR 47 M 400 NADELLA

Brand - NADELLA
Item Number - FSR 47 M 400 NADELLA
Category - Circular Rail in Steel

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 9°
Dimension (I) - 18°
Dimension (f) - 18°
Dimension (d) - 10 (H7) mm
Dimension (D) - 11.5 mm
Radius (R1) - 438 mm
Radius (R2) - 400 mm
Radius (R3) - 362 mm
Dimension (h) - 76 mm
Dimension (H) - 78.58 mm
Dimension (S) - 10 mm
Fixing Holes / 360° - 20°
Pin Holes / 360° - 8°
Dimension (C) - 18 mm
Dimension (B) - 58 mm
Dimension (e) - 43 mm
Dimension (G) - M6
Dimension (D) - 11.5 mm
Dimension (a) - 8.6 mm
Dimension (b) - 18.1 mm
Dimension (t) - 9 mm
Suggested Combinations - FR 40 EU, FRN 40 EI, FR 52 EU, RKY 52

Description of Suffixes and Prefixes:
FSR...M - Circular rail in steel, for Multi-Motion-Line system

Other salient points to be noted:

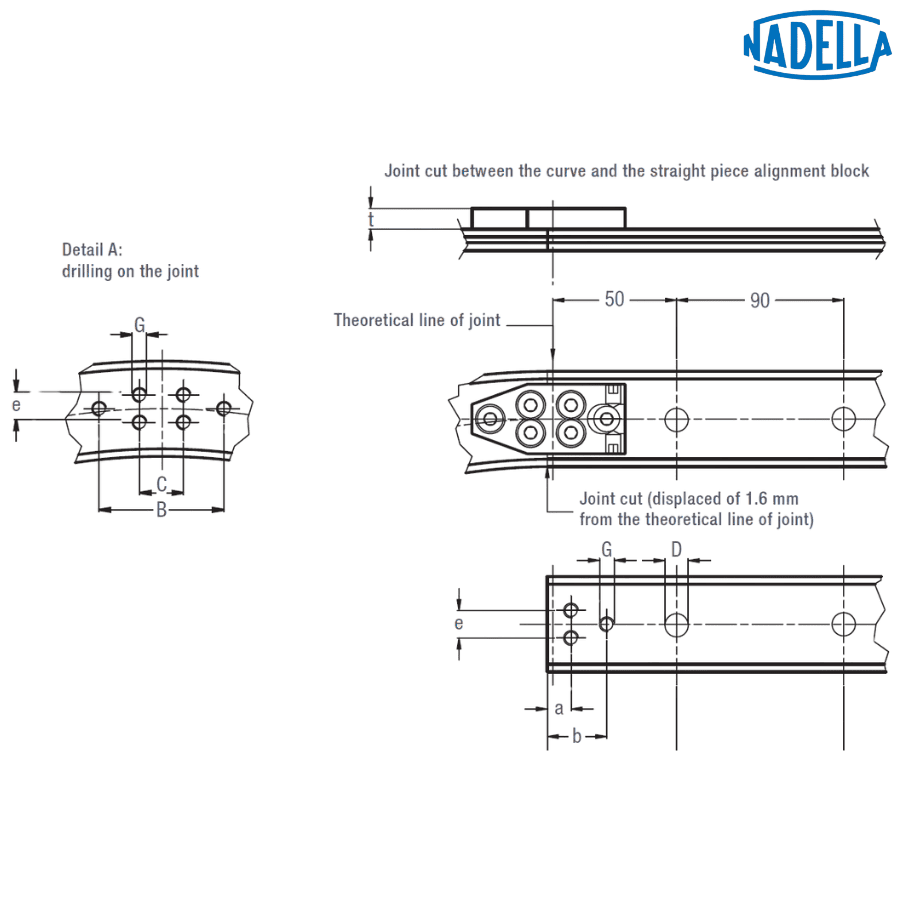

• The joint cut is displaced of 1.6 mm from the theoretical line of joint
• The alignment block allows an easy mounting of the joint
