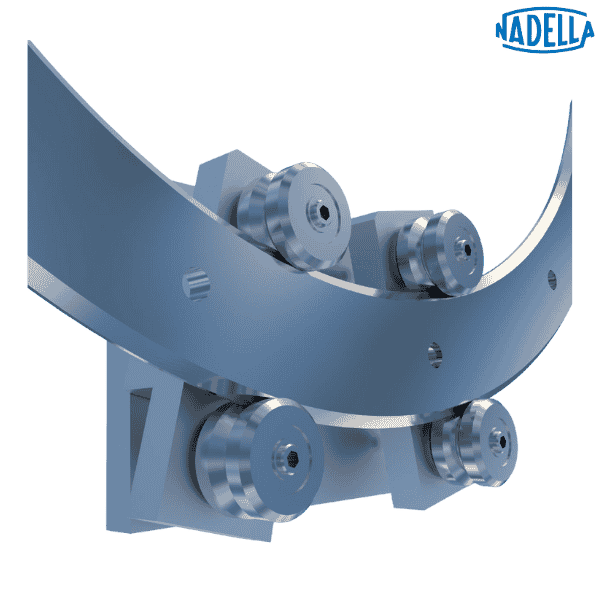

FSR 35 M 300 NADELLA

Brand - NADELLA
Item Number - FSR 35 M 300 NADELLA
Category - Circular Rail in Steel

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 11.25°
Dimension (I) - 22.5°
Dimension (f) - 7.5°
Dimension (d) - 8 (H7) mm
Dimension (D) - 9 mm
Radius (R1) - 323 mm
Radius (R2) - 300 mm
Radius (R3) - 277 mm
Dimension (h) - 46 mm
Dimension (H) - 47.86 mm
Dimension (S) - 8 mm
Fixing Holes / 360° - 16°
Pin Holes / 360° - 8°
Dimension (C) - 18 mm
Dimension (B) - 38 mm
Dimension (e) - 20 mm
Dimension (G) - M6
Dimension (D) - 9 mm
Dimension (a) - 10.6 mm
Dimension (b) - 19.6 mm
Dimension (t) - 8 mm
Suggested Combinations - FR 32 EU, FRN 32 EI, FR 40 EU, FRN 40 EI

Description of Suffixes and Prefixes:
FSR...M - Circular rail in steel, for Multi-Motion-Line system

Other salient points to be noted:

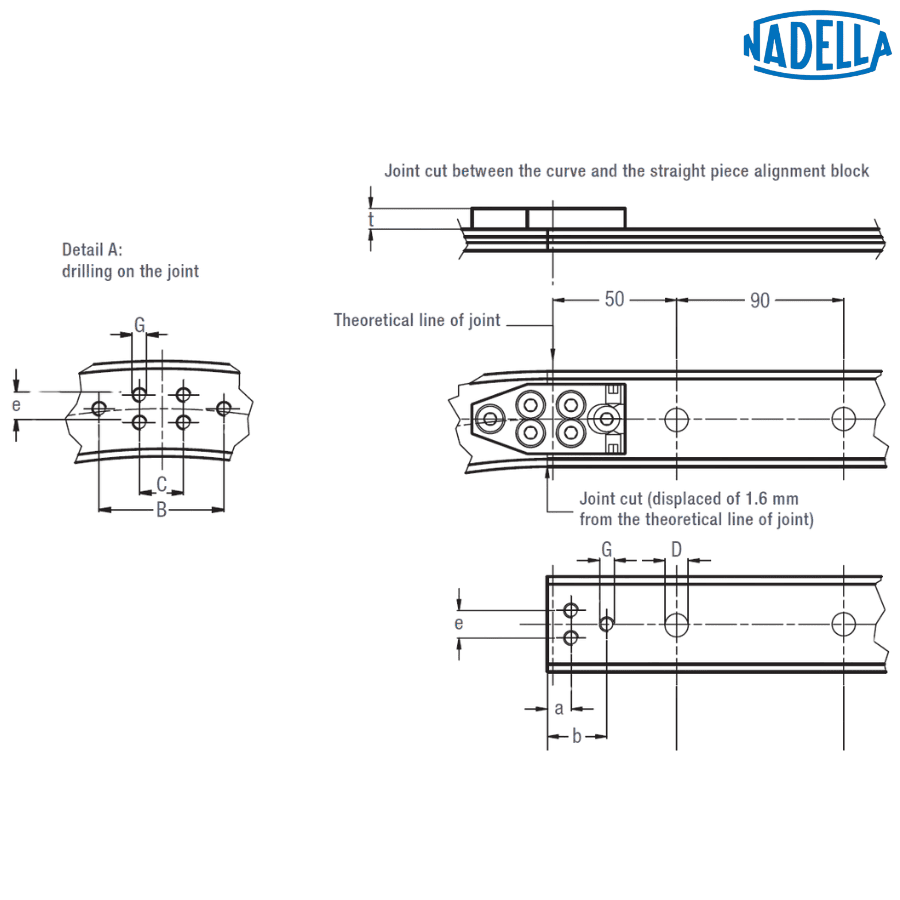

• The joint cut is displaced of 1.6 mm from the theoretical line of joint
• The alignment block allows an easy mounting of the joint

♦ ♦ Images are for representation purposes only
