FSR 22 M 125 NADELLA

Brand - NADELLA
Item Number - FSR 22 M 125 NADELLA
Category - Circular Rail in Steel

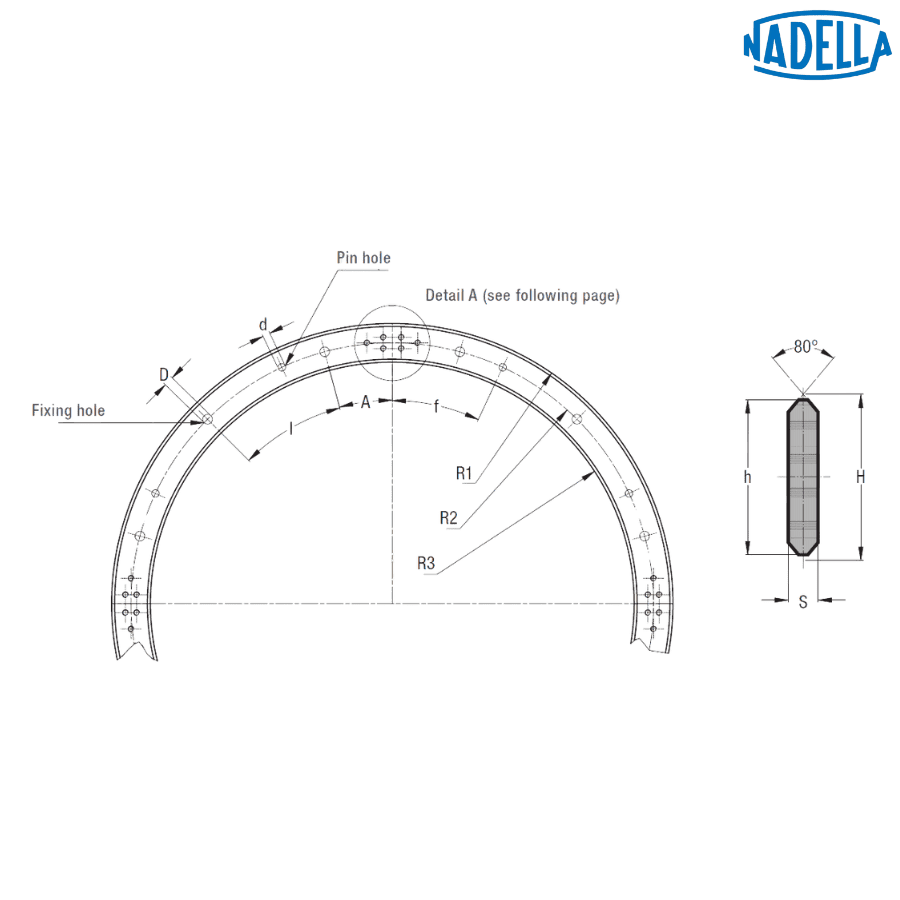

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 15°
Dimension (I) - 30°
Dimension (f) - 25°
Dimension (d) - 5 (H7) mm
Dimension (D) - 6.5 mm
Radius (R1) - 138 mm
Radius (R2) - 125 mm
Radius (R3) - 112 mm
Dimension (h) - 26 mm
Dimension (H) - 27.86 mm
Dimension (S) - 5 mm
Fixing Holes / 360° - 12°
Pin Holes / 360° - 8°
Dimension (C) - 12 mm
Dimension (B) - 34 mm
Dimension (e) - 7.5 mm
Dimension (G) - M4
Dimension (D) - 6.5 mm
Dimension (a) - 7.6 mm
Dimension (b) - 18.6 mm
Dimension (t) - 5.8 mm
Suggested Combinations - FR 22 EU, FRN 22 EI

Description of Suffixes and Prefixes:

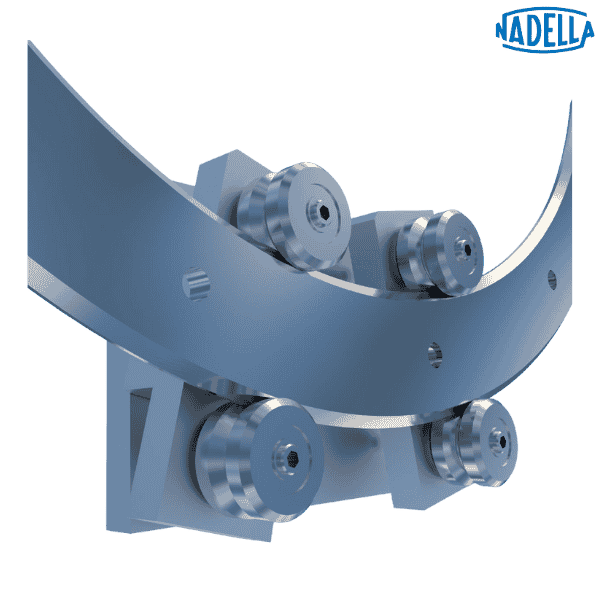

FSR...M - Circular rail in steel, for Multi-Motion-Line system

Other salient points to be noted:

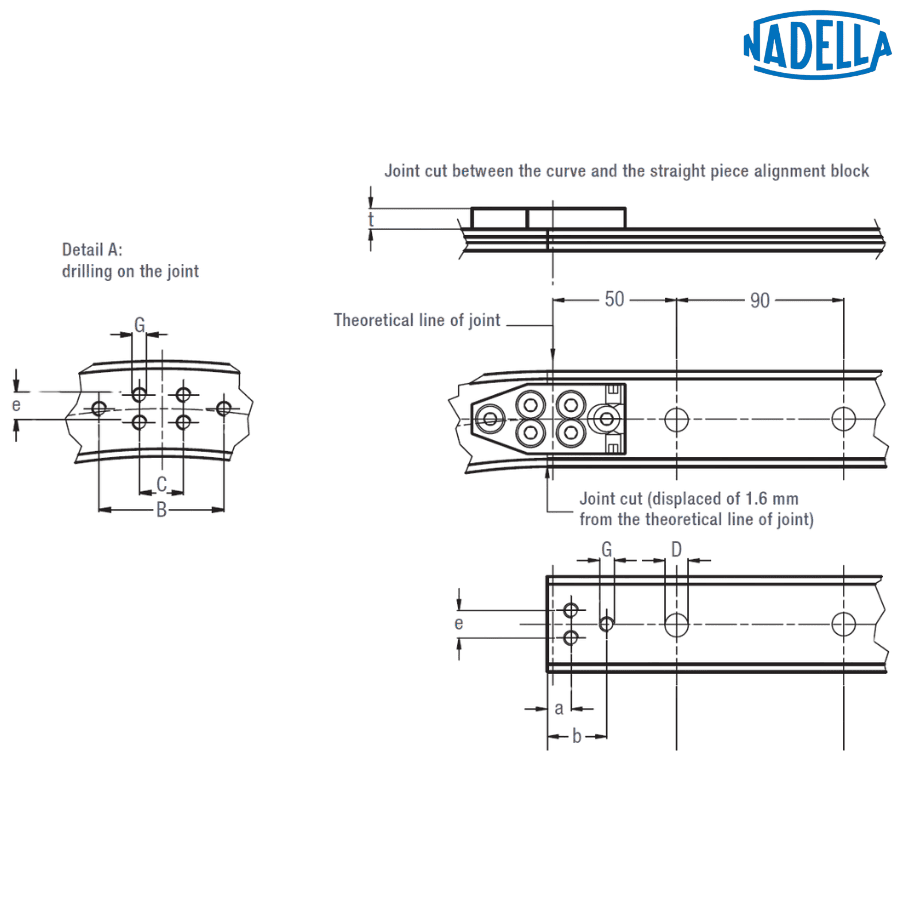

• The joint cut is displaced of 1.6 mm from the theoretical line of joint
• The alignment block allows an easy mounting of the joint

♦ ♦ Images are for representation purposes only
