FSN 40 RINGSPANN

Brand - RINGSPANN
Part Number - FSN 40 RINGSPANN
Category - Internal Freewheels FSN

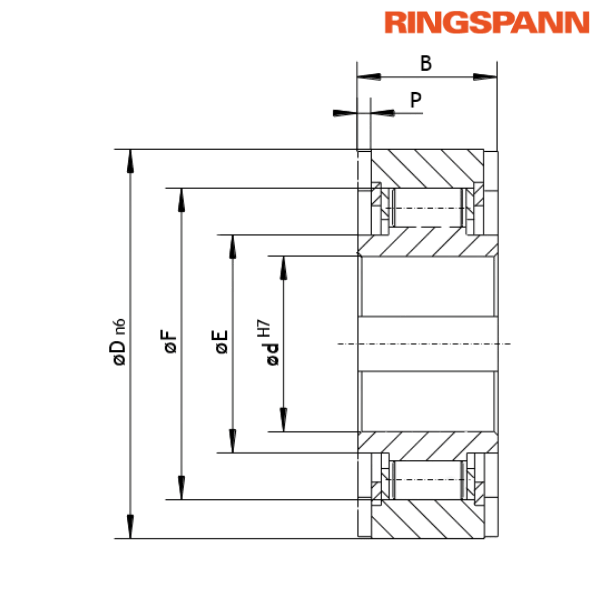

Principal Dimensions & Specifications (Metric):
Nominal Torque (M_N) - 430 Nm
Maximum Speed Inner Ring Freewheels/Overruns - 1100 RPM
Maximum Speed Outer Ring Freewheels/Overruns - 2050 RPM
Bore Diameter (d) - 40* mm
Dimension (B) - 33 mm
Dimension (D) - 90 mm
Dimension (E) - 55 mm
Dimension (F) - 78 mm

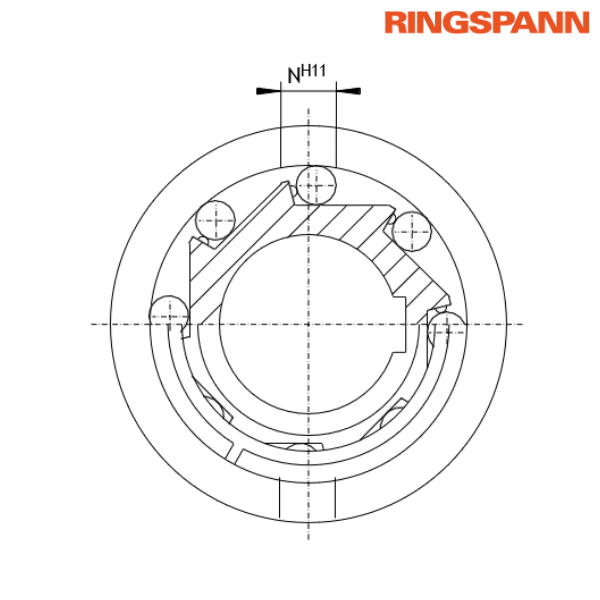

Dimension (N) - 12 mm
Dimension (P) - 3.5 mm
Weight - 0.9 kg

Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Keyway connection on the outer ring with rollers

* Keyway according to DIN 6885

Features:

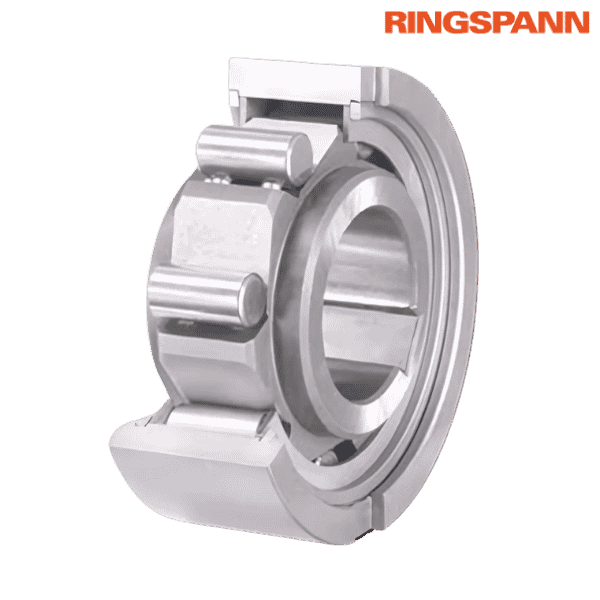

• Internal Freewheels FSN are roller freewheels designed without bearing support
• Designed to handle nominal torques up to 3,000 Nm
• Available with bores up to 80 mm

Application as: Backstop, Overrunning Clutch, Indexing Freewheel

Application Example:
• Internal Freewheel FSN 50 is used as a backstop, installed at the end of the intermediate shaft of a spur gearbox in an elevator drive system
• In the event of a motor stop, the freewheel ensures that the elevator remains securely held in position

Mounting:
• Internal Freewheels FSN are supplied without bearing support
• The housing bore tolerance (D) must meet ISO H7 or G7 standards
• The shaft tolerance must comply with ISO h6 or j6

Lubrication:
• An oil lubrication of the specified quality must be provided
