FSHZ 72 MT NADELLA

Brand - NADELLA
Item Number - FSHZ 72 MT NADELLA
Category - Steel Guides with Integrated Rack

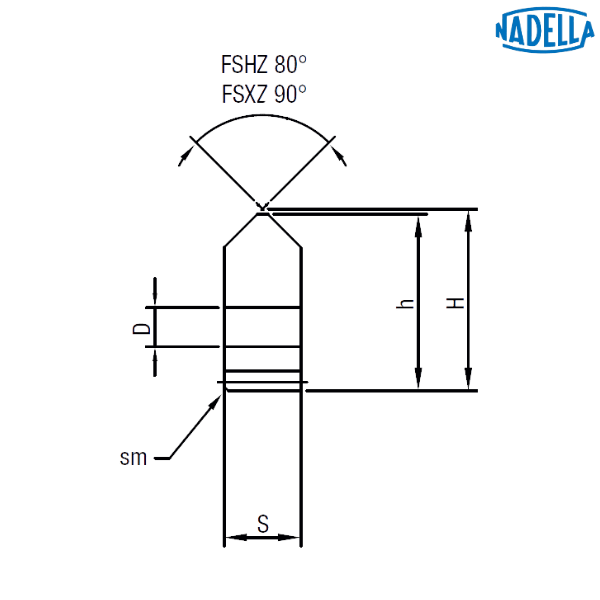

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 60.85 mm
Dimension (h) - 59.2 mm
Dimension (S) - 19 mm
Dimension (Sm) - 2 x 45°
Module - m 2
Step (p) - 6.283 mm
Dimension (D) - 17.5 mm
Dimension (e) - 20 mm
Dimension (l) - 90 mm
Dimension (l1) - 30 mm
Dimension (p1) - 26.86 mm
Push * - 2100 N
Weight without Holes - 8 kg/m

Description of Prefix:

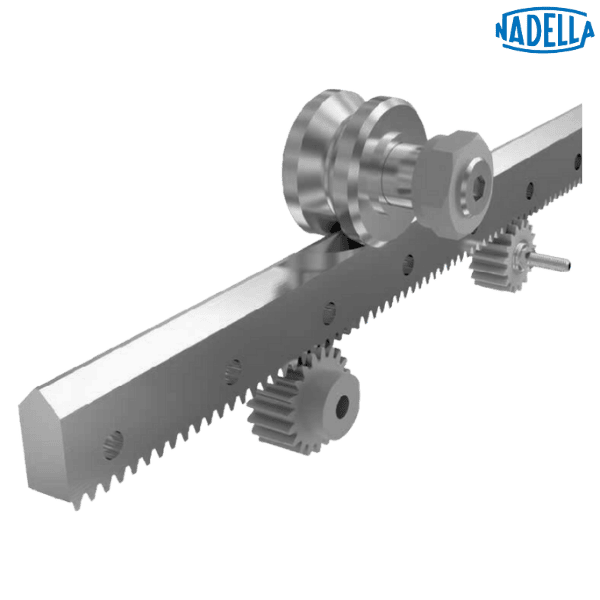

FSHZ - Guide rail with integrated rack transmission

Other salient points to be noted:
• Maximum length of single element L = 3000 mm
• Longer rails are made by juxtaposing several elements with ground end

* Calculated thrust with lubricated rack coupled with a Z20 pinion to achieve a long service life. Apply a safety factor according to the type of application

Finishing ..MT:
• Drawn induction hardened on raceway and sand blaster
• Standard rack type: straight, cut and hardened Quality 10

On Request:
• Ground rail ..M
• Induction hardened and ground rack
• Angle rack - special rack on request

Standard Designation Examples:
• FSH 52 MT 760
• FSH 52 MT 1050
• FSH 52 MT 2600

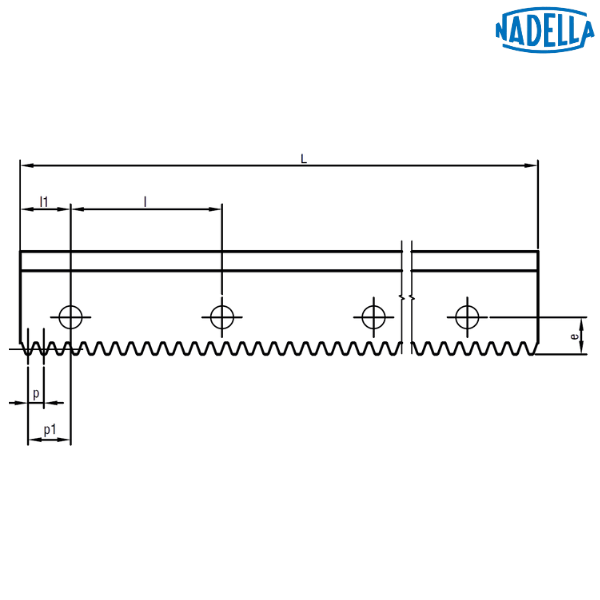

Hole Layout:
• For Holes according to catalogue, suffix will be SB, e.g. FSH 52 MT 2600 SB
• For Finishes to drawing, suffix will be NZ, e.g. FSH 52 MT 2600 NZ
• For Without holes, suffix will be NF, e.g. FSH 52 MT 2600 NF
