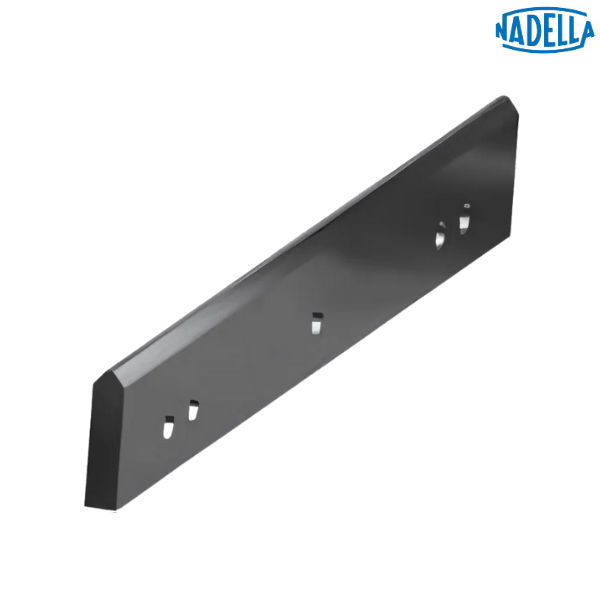

FSH 72 MT NADELLA

Brand - NADELLA
Item Number - FSH 72 MT NADELLA
Category - V-Line Guide Rail in Steel with Sandblasted Raceway

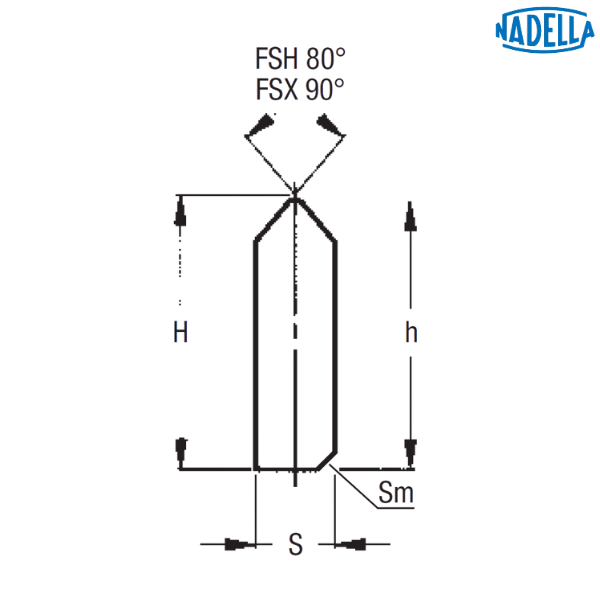

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 60.85 (± 0.1) mm
Dimension (h) - 59.2 (± 0.1) mm
Dimension (S) - 19 (± 0.1) mm
Dimension (Sm) - 2 x 45°
Dimension (d*) - 10 (+0.05) mm
Dimension (D) - 17.5 mm
Dimension (c*) - 30 mm
Dimension (e) - 20 mm
Dimension (l) - 90 mm
Dimension (l1) - 30 mm
Weight without Holes - 8.2 kg/m

Description of Suffixes and Prefixes:
FSH...MT - Rail in steel with sandblasted raceways, for V-Line system

Other salient points to be noted:
• Maximum length in single element L = 6000 mm
• Longer rails are made by juxtaposing several elements with ground end

* Standard layout without pin holes (pin holes only on request)

Rail Finishing:
• Drawn, induction hardened and sandblasted tracks (MT)
• Induction hardening on raceways and base only

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Chemical nickel-plating (NW)
• Pin holes (DP)

Standard Designation Examples:
• FSH 22 MT 760
• FSH 22 MT 1050
• FSH 22 MT 2600
• FSH 22 MT 3450
• FSH 22 MT 4080
• FSH 22 MT 5380

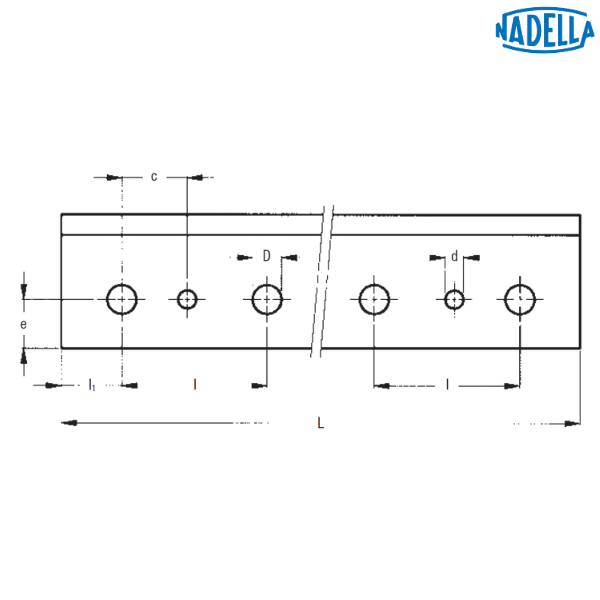

Hole Layout:
• For Holes according to catalogue, suffix will be SB, e.g. FSH 22 MT 2600 SB
• For Finishes to drawing, suffix will be NZ, e.g. FSH 22 MT 2600 NZ
• For Without holes, suffix will be NF, e.g. FSH 22 MT 2600 NF
