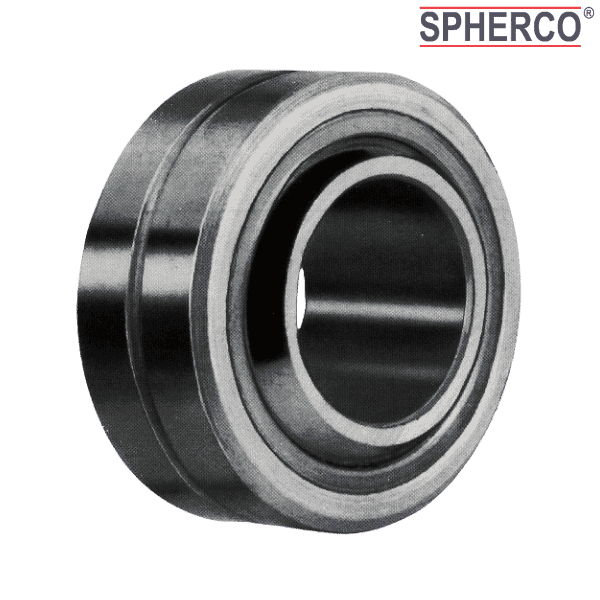

FSBG7 RBC SPHERCO

Brand - RBC SPHERCO
Item Number - FSBG7 RBC SPHERCO
Category - Spherical Plain Bearing (Precision Series)

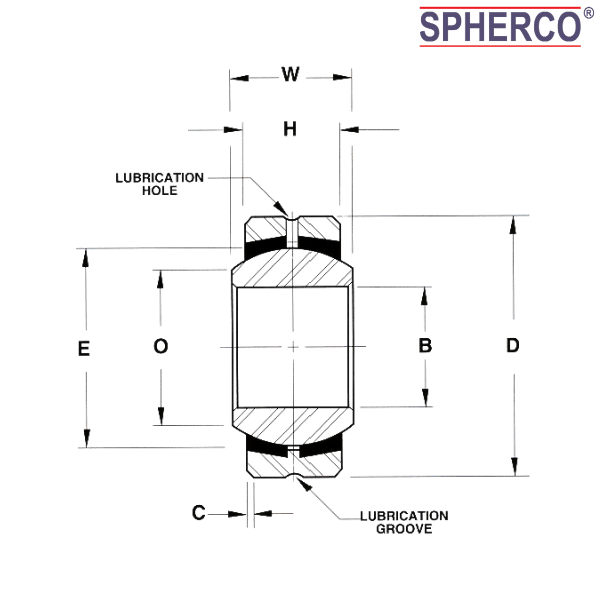

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.4375 (+.0000 to -.0005) inch
Outer DIameter (D) - 0.9062 (+.0000 to -.0005) inch
Ball Width (W) - 0.437 (+.000 to -.005) inch
Housing Width (H) * - 0.343 (+.000 to -.005) inch
Chamfer DImension (C) - 0.032 (+.015 to -.000) inch
Ball Diameter (E) - 0.687 inch
Ball Flat Diameter (O) - 0.53 inch
Maximum Static Radial Load - 8625 lbf
Approximate Weight - 0.05 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.023 kg

Other salient points to be noted :
• Other Member : 4130 or 4340 Alloy steel, heat treated, with protective coating for corrosion resistance on all surfaces exposed after installation
• Ball : 52100 Alloy steel, heat treated, chrome plated
• Inserts : Copper alloy

* ''H'' tolerance across inserts is +/-.015

♦ ♦ Images are for representation purposes only
