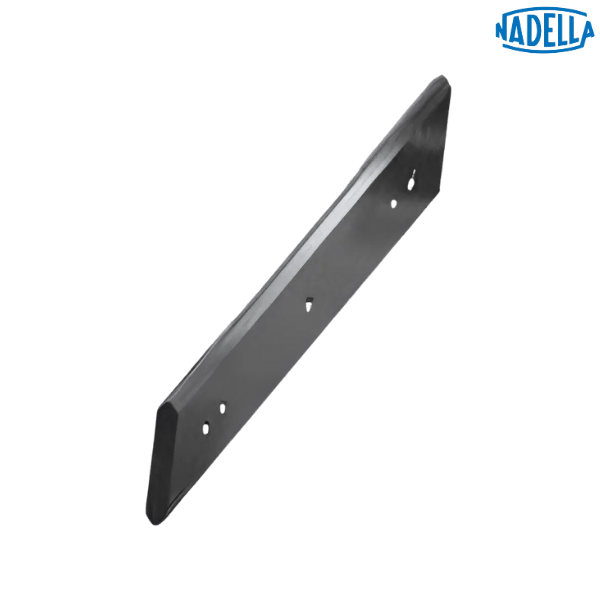

FS 47 M NADELLA

Brand - NADELLA
Item Number - FS 47 M NADELLA
Category - V-Line Rail in Steel with Ground Raceways

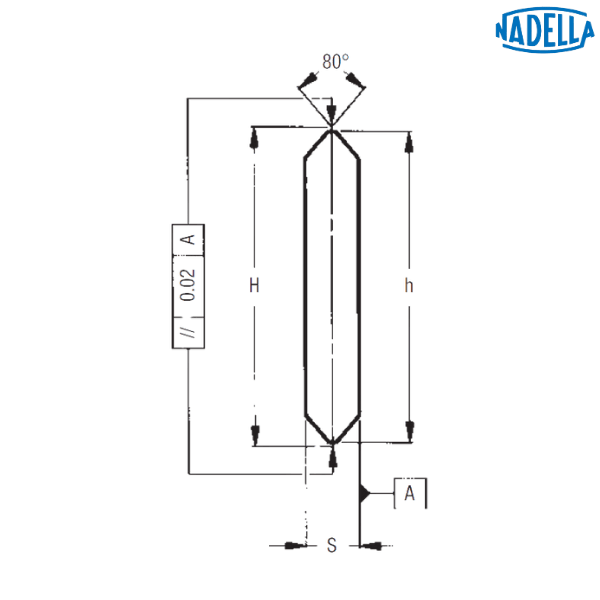

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 78.58 (± 0.5) mm
Dimension (h) - 76 (± 0.1) mm
Dimension (S) - 10 (± 0.5) mm
Dimension (d*) - 6 (+0.05) mm
Dimension (D) - 11.5 mm
Dimension (c*) - 20 mm
Dimension (l) - 90 mm
Dimension (l1) - 30 mm
Weight without Holes - 5.6 kg/m

Description of Suffixes and Prefixes:
FS...M - Rail in steel with ground raceways, for V-Line system

Other salient points to be noted:
* Standard layout without pin holes (pin holes only on request)

• Maximum length in single element L = 4020 mm
• Longer rails are made by juxtaposing several elements with ground end

Rails Finishing:
• Drawn, induction hardened and sandblasted tracks (MT)
• Induction hardening on raceways only

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Chemical nickel-plating (NW)
• Pin holes (DP).

Standard Designation Examples:
• FS 19 M 760
• FS 19 M 1050
• FS 19 M 2600
• FS 19 M 3450

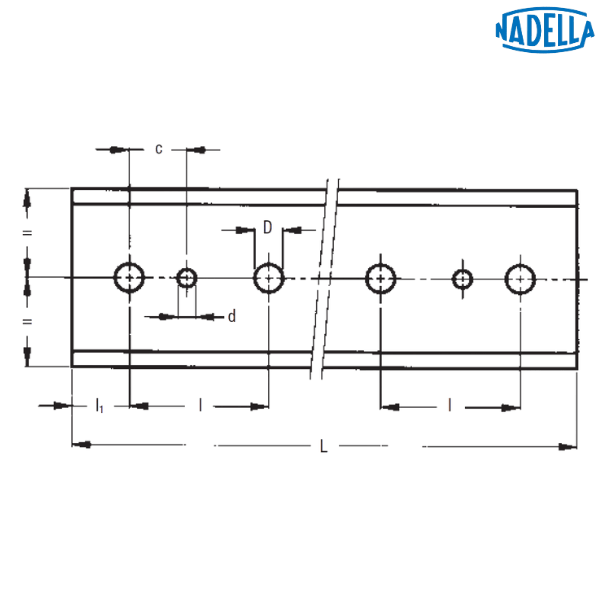

Hole Layout:
• For Holes according to catalogue, suffix will be SB, e.g. FS 19 M 2600 SB
• For Finishes to drawing, suffix will be NZ, e.g. FS 19 M 2600 NZ
• For Without holes, suffix will be NF, e.g. FS 19 M 2600 NF
