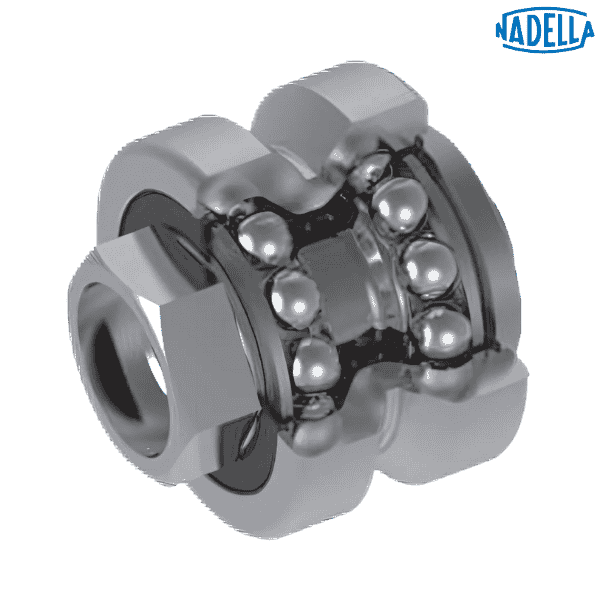

FRR 62 EU AZ NADELLA

Brand - NADELLA
Item Number - FRR 62 EU AZ NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d1) - 19 (H7) mm
Dimension (d*) - 16.1 mm
Dimension (T) - 22.1 mm
Dimension (m) - 20.8 mm
Dimension (L) - 54.5 mm
Dimension (A) - 33.6 mm
Dimension (B) - 50.3 mm
Dimension (l1) - 4.2 mm
Dimension (l) - 4 mm
Dimension (h) - 12.7 mm
Dimension (M) - 35 mm
Dimension (SW) - 32 mm
Dimension (G) - 42.3
Dimension (o) - 6.5 mm
Dimension (lg*) - 30 mm
Dimension (k) - 1.5 mm
Guide Roller Size - 62 mm
Dynamic Load (Cw****) - 13900 N
Radial Limit Load (Fr) - 9200 N
Axial Limit Load (Fa) - 3500 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Weight - 0.587 kg
On Request for AZ Screw DIN 8003 - M16 x 65

Other salient points to be noted:
* AZ: minimum length of the thread engaged steel = 1 x d; cast iron = 1.25 x d; aluminium = 2 x d
**** Cw basic load for 100 km

• NBR seals RS type
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
