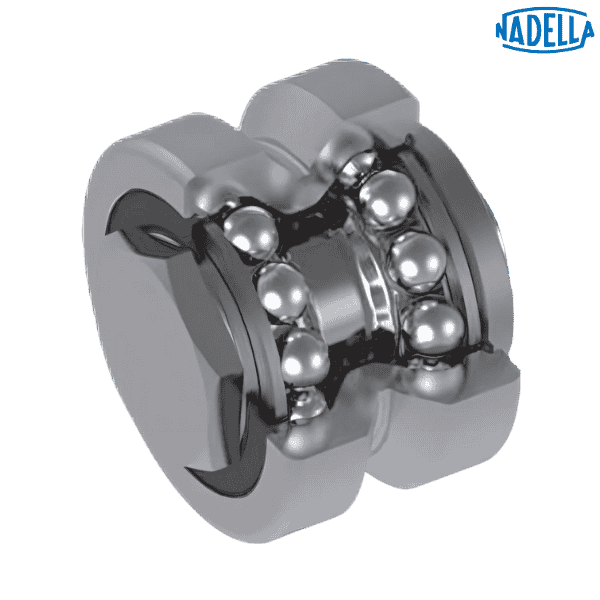

FRR 52 EU AS NADELLA

Brand - NADELLA
Item Number - FRR 52 EU AS NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

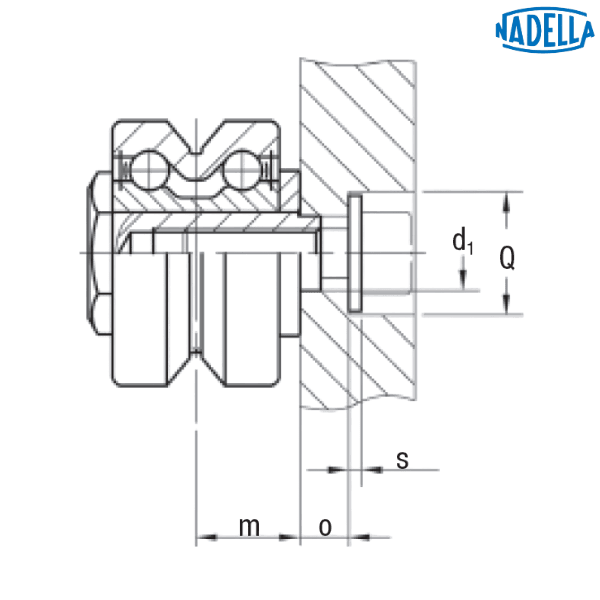

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (d1) - 16 (H7) mm
Dimension (d*) - M10
Dimension (T) - 19.1 mm
Dimension (m) - 19.8 mm
Dimension (L) - 43.2 mm
Dimension (A) - 32 mm
Dimension (B) - 40 mm
Dimension (l1) - 3.2 mm
Dimension (l) - 3.8 mm
Dimension (M) - 28 mm
Dimension (SW) - 27 mm
Dimension (o) - 8 mm
Dimension (Q) - 24
Dimension (s) - 2.5**
Dimension (k) - 1.5 mm
Guide Roller Size - 52 mm
Dynamic Load (Cw****) - 11700 N
Radial Limit Load (Fr) - 5830 N
Axial Limit Load (Fa) - 2560 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Weight - 0.374 kg
On Request for AZ Screw DIN 7997 - M14 x 60

Other salient points to be noted:
** Guide roller with washers DIN 134 without screw DIN 7984 or DIN 912
**** Cw basic load for 100 km

• NBR seals RS type
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
