FRR 40 EU NADELLA

Brand - NADELLA
Item Number - FRR 40 EU NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

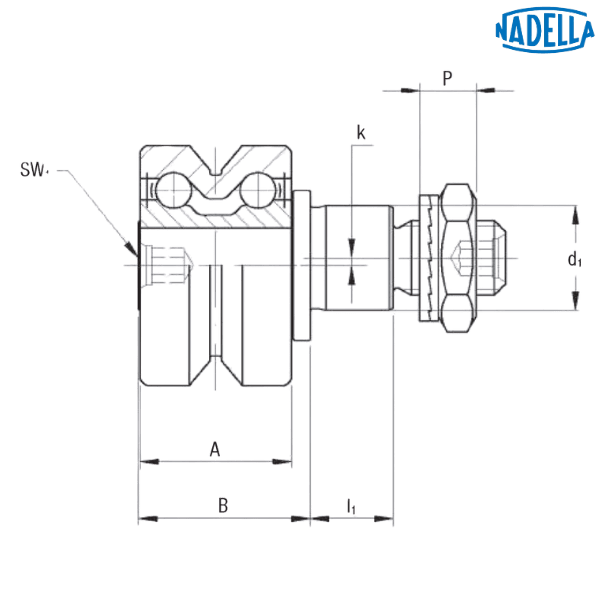

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 40 mm
Dimension (d1) - 16 (H7) mm
Dimension (d) - M12 x 1.5
Dimension (T) - 14.6 mm
Dimension (m) - 15.5 mm
Minimum Dimension (S) - 12 mm
Dimension (P) - 10.4 mm
Dimension (L) - 58.5 mm
Dimension (A) - 25 mm
Dimension (B) - 29.5 mm
Dimension (I1) - 11 mm
Dimension (M) - 22 mm
Dimension (SW1) - 5 mm
Dimension (SW2) - 19 mm
Dimension (SW3) - 5 mm
Dimension (k) - 1 mm
Dynamic Load (Cw**) - 8500 N
Radial Limit Load (Fr) - 3650 N
Axial Limit Load (Fa) - 1400 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Torque Wrench Settings *** - 26 Nm
Weight - 0.23 kg

Other salient points to be noted:
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• This Part Number is available in stainless steel (NX)
• FR 22 EUNX: VAC for high vacuum applications on request

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 40°
• Standard: NBR seals RS type

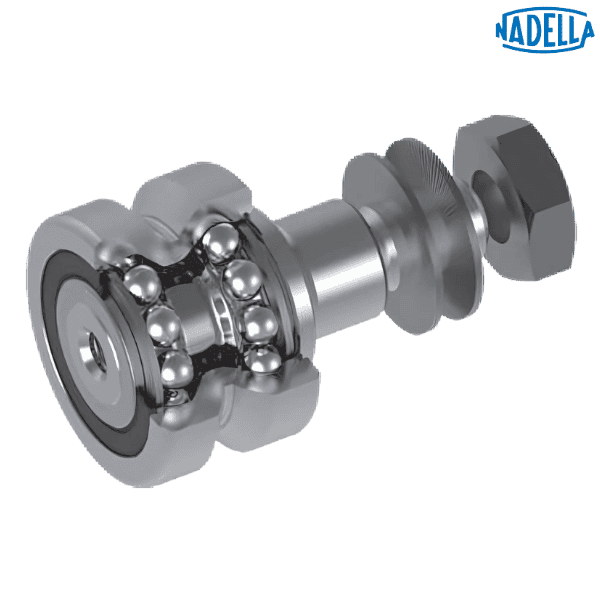

♦ ♦ Images are for representation purposes only
