FRR 40 EU AZ NADELLA

Brand - NADELLA
Item Number - FRR 40 EU AZ NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

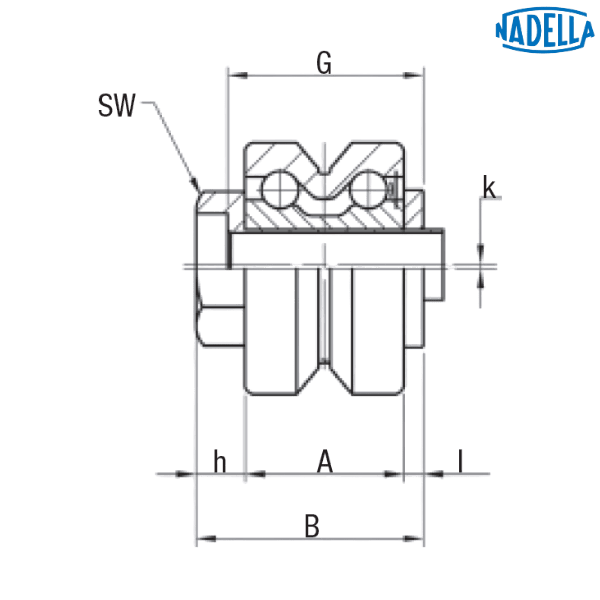

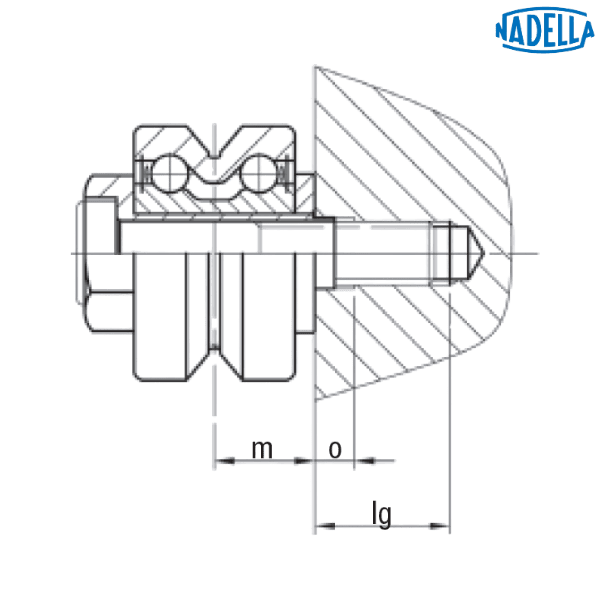

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 40 mm
Dimension (d1) - 11 (H7) mm
Dimension (d*) - 10.1 mm
Dimension (T) - 14.6 mm
Dimension (m) - 15.5 mm
Dimension (L) - 38 mm
Dimension (A) - 25 mm
Dimension (B) - 35.5 mm
Dimension (l1) - 2.5 mm
Dimension (l) - 3 mm
Dimension (h) - 7.5 mm
Dimension (M) - 22 mm
Dimension (SW) - 22 mm
Dimension (G) - 30.5
Dimension (o) - 5 mm
Dimension (lg*) - 26 mm
Dimension (k) - 0.8 mm
Guide Roller Size - 40 mm
Dynamic Load (Cw****) - 8500 N
Radial Limit Load (Fr) - 2120 N
Axial Limit Load (Fa) - 940 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Weight - 0.173 kg
On Request for AZ Screw DIN 8001 - M10 x 50

Other salient points to be noted:
* AZ: minimum length of the thread engaged steel = 1 x d; cast iron = 1.25 x d; aluminium = 2 x d
**** Cw basic load for 100 km

• This Part Number is available in stainless steel (NX)
• NBR seals RS type
• Pressure angle α for load calculation: 40°

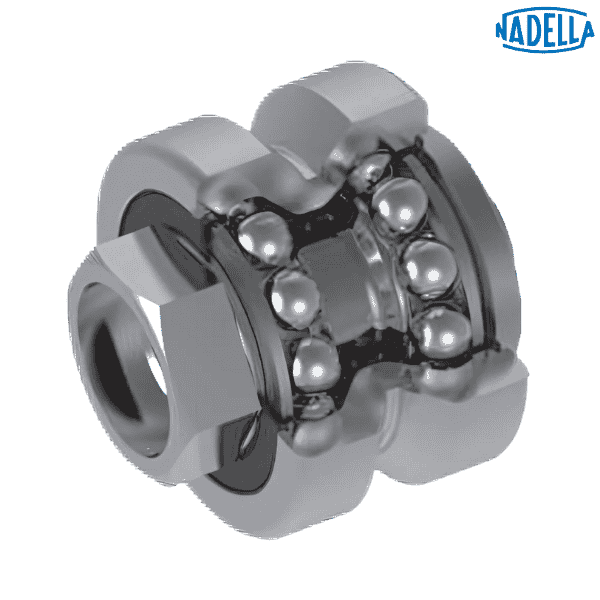

♦ ♦ Images are for representation purposes only
