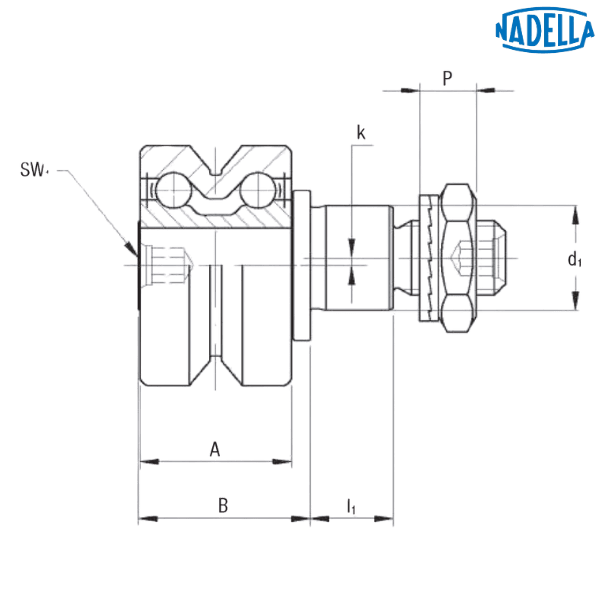

FRR 32 EU NADELLA

Brand - NADELLA
Item Number - FRR 32 EU NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 32 mm
Dimension (d1) - 14 (H7) mm
Dimension (d) - M10 x 1.25
Dimension (T) - 11.8 mm
Dimension (m) - 12.6 mm
Minimum Dimension (S) - 12 mm
Dimension (P) - 8.5 mm
Dimension (L) - 48.9 mm
Dimension (A) - 20.2 mm
Dimension (B) - 22.9 mm
Dimension (I1) - 11 mm
Dimension (M) - 20 mm
Dimension (SW1) - 4 mm
Dimension (SW2) - 17 mm
Dimension (SW3) - 4 mm
Dimension (k) - 1 mm
Dynamic Load (Cw**) - 5800 N
Radial Limit Load (Fr) - 2000 N
Axial Limit Load (Fa) - 800 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Torque Wrench Settings *** - 20 Nm
Weight - 0.125 kg

Other salient points to be noted:
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 40°
• Standard: NBR seals RS type

♦ ♦ Images are for representation purposes only
