FRR 32 EU AS NADELLA

Brand - NADELLA
Item Number - FRR 32 EU AS NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

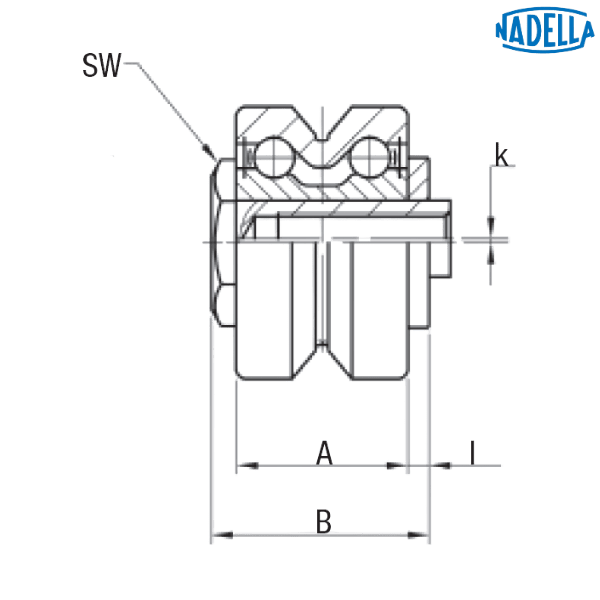

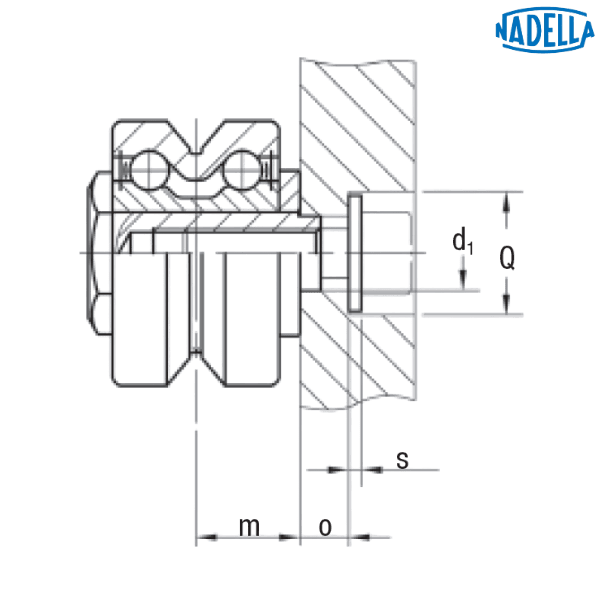

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 32 mm
Dimension (d1) - 9 (H7) mm
Dimension (d*) - M 6
Dimension (T) - 11.8 mm
Dimension (m) - 12.6 mm
Dimension (L) - 28.1 mm
Dimension (A) - 20.2 mm
Dimension (B) - 25.6 mm
Dimension (l1) - 2.5 mm
Dimension (l) - 2.5 mm
Dimension (M) - 20 mm
Dimension (SW) - 17 mm
Dimension (o) - 6 mm
Dimension (Q) - 15
Dimension (s) - 1.5**
Dimension (k) - 0.5 mm
Guide Roller Size - 32 mm
Dynamic Load (Cw****) - 5800 N
Radial Limit Load (Fr) - 1590 N
Axial Limit Load (Fa) - 710 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Weight - 0.095 kg
On Request for AZ Screw DIN 7995 - M8 x 40

Other salient points to be noted:
** Guide roller with washers DIN 134 without screw DIN 7984 or DIN 912
**** Cw basic load for 100 km

• This Part Number is available in stainless steel (NX)
• NBR seals RS type
• Pressure angle α for load calculation: 40°

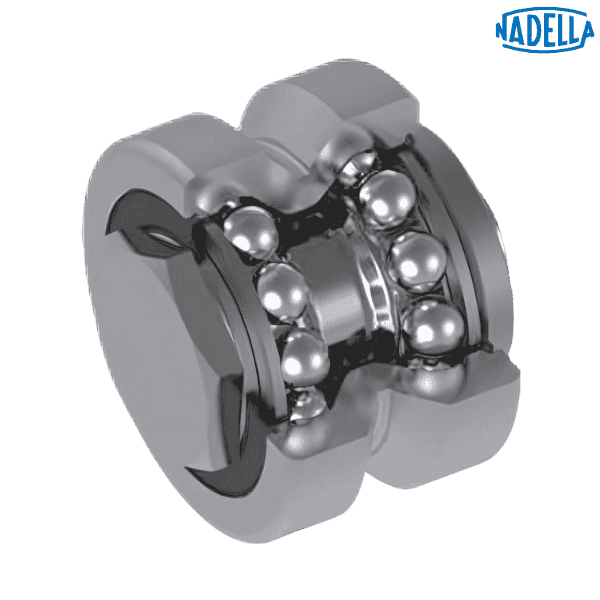

♦ ♦ Images are for representation purposes only
