FRR 22 EU AS NADELLA

Brand - NADELLA
Item Number - FRR 22 EU AS NADELLA
Category - V-Line Guide Roller with Ball Bearing (Eccentric)

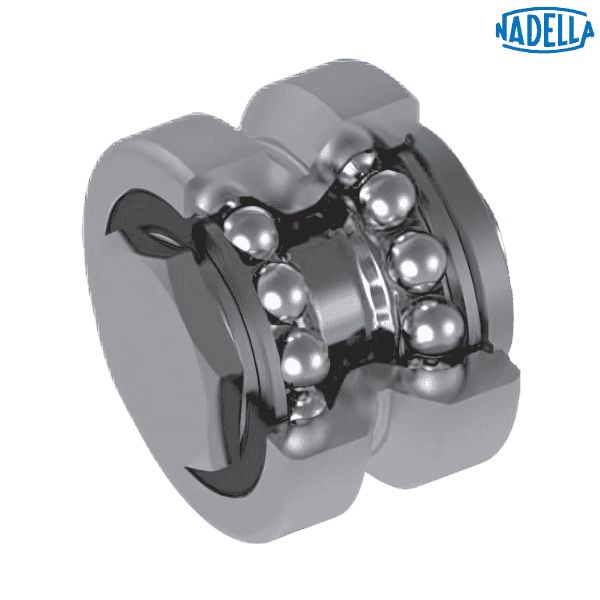

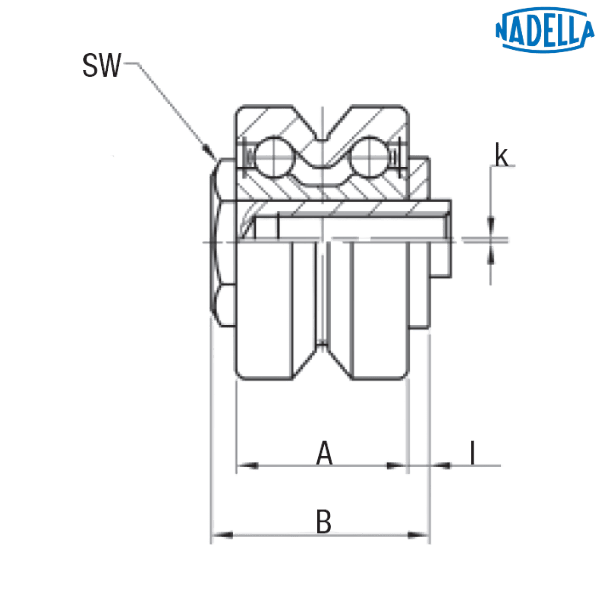

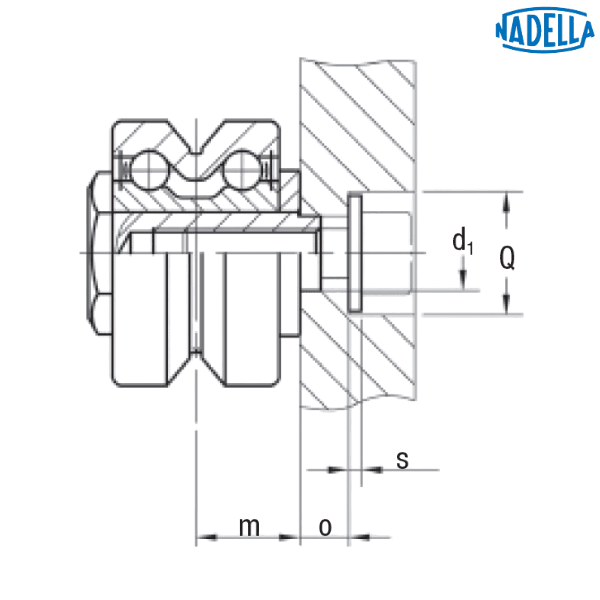

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 22 mm
Dimension (d1) - 6 (H7) mm
Dimension (d*) - M 5
Dimension (T) - 7.7 mm
Dimension (m) - 9.4 mm
Dimension (L) - 21.8 mm
Dimension (A) - 15 mm
Dimension (B) - 19.8 mm
Dimension (l1) - 2 mm
Dimension (l) - 1.9 mm
Dimension (M) - 14 mm
Dimension (SW) - 10 mm
Dimension (o) - 4.5 mm
Dimension (Q) - 10
Dimension (k) - 0.5 mm
Guide Roller Size - 22 mm
Dynamic Load (Cw****) - 2900 N
Radial Limit Load (Fr) - 470 N
Axial Limit Load (Fa) - 210 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 2
Weight - 0.033 kg
On Request for AZ Screw DIN 7994 - M5 x 30

Other salient points to be noted:
**** Cw basic load for 100 km

• This Part Number is available in stainless steel (NX)

• This Part Number is available in stainless steel (NX)

• NBR seals RS type
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
