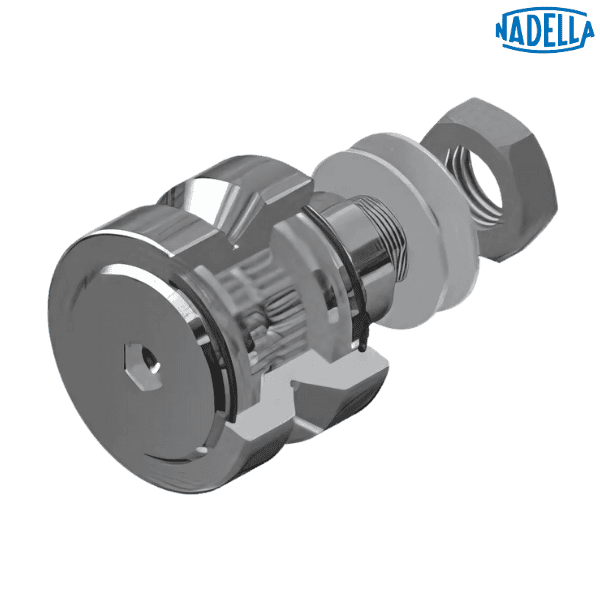

FRNR 32 EI NADELLA

Brand - NADELLA
Item Number - FRNR 32 EI* NADELLA
Category - V-Line Guide Roller with Needle Roller Bearing

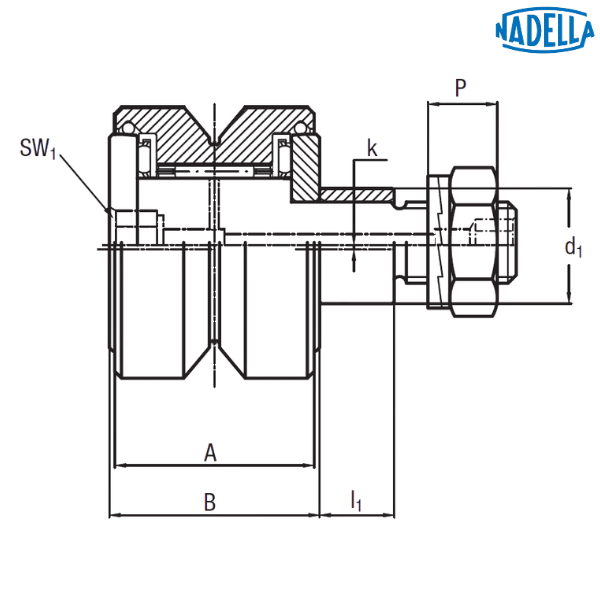

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 32 mm
Dimension (d1***) - 14 (H7) mm
Dimension (d) - M10 x 1.25
Dimension (T) - 11.8 mm
Dimension (m) - 12.6 mm
Minimum Dimension (S) - 12 mm
Dimension (P) - 10.4 mm
Dimension (L) - 52 mm
Dimension (A) - 24.2 mm
Dimension (B) - 26 mm
Dimension (I1) - 11 mm
Dimension (M) - 25 mm
Dimension (SW1) - 4 mm
Dimension (SW2) - 16 mm
Dimension (k) - 1 mm
Dynamic Load (Cwr****) - 5600 N
Dynamic Load (Cwa****) - 2100 N
Radial Limit Load (Fr) - 2030 N
Axial Limit Load (Fr) - 950 N
Torque Wrench Settings***** - 20 Nm
Weight - 0.16 kg

Other salient points to be noted:
* Lubrication hole only on head side
*** Lubrication hole also on stud side
**** Cw basic load for 100 km
***** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX). Internal rolling elements in standard bearing steel
• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 40°
• Standard Viton seals to fit temperature up to 120°C
• The sides of the race are slightly convex

♦ ♦ Images are for representation purposes only
