FRLR 52 EU NADELLA

Brand - NADELLA
Item Number - FRLR 52 EU NADELLA
Category - Floating Guide Rollers with Ball Bearing

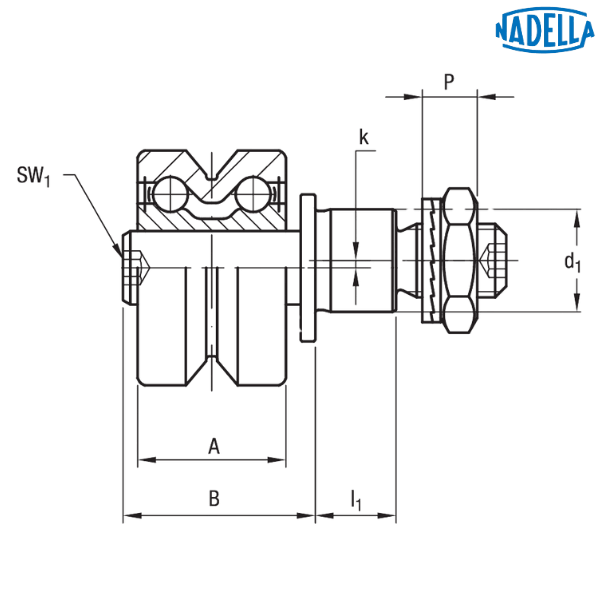

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (d1) - 21 (H7) mm
Dimension (d) - M16 x 1.5
Dimension (T) - 19.1 mm
Minimum Dimension (S) - 15 mm
Dimension (P) - 11.4 mm
Dimension (L) - 74 mm
Dimension (A) - 32 mm
Dimension (B) - 41 mm
Dimension (l1) - 14 mm
Dimension (M) - 28 mm
Minimum Dimension (m**) - 19 mm
Maximum Dimension (m**) - 25 mm
Dimension (SW1) - 6 mm
Dimension (SW2) - 24 mm
Dimension (SW3) - 6 mm
Dimension (k) - 1.5 mm
Dynamic Load (Cw***) - 11700 N
Radial Limit Load (Fr) - 7600 N
Torque Wrench Settings**** - 64 Nm
Weight Without fittings - 0.52 kg

Other salient points to be noted:
** To ensure a safe and proper functioning the dimension m must not be higher than m maximum
*** Cw = Basic load for 100 km
**** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• Standard seals: material NBR, RS type
• Guide rollers include self-locking washers and hexagonal nut (DIN 439B)
• Pressure angle α for load calculation: 40°

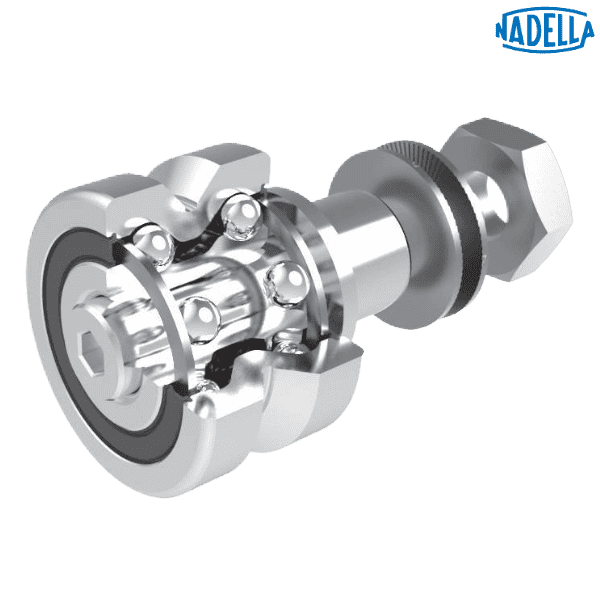

♦ ♦ Images are for representation purposes only
