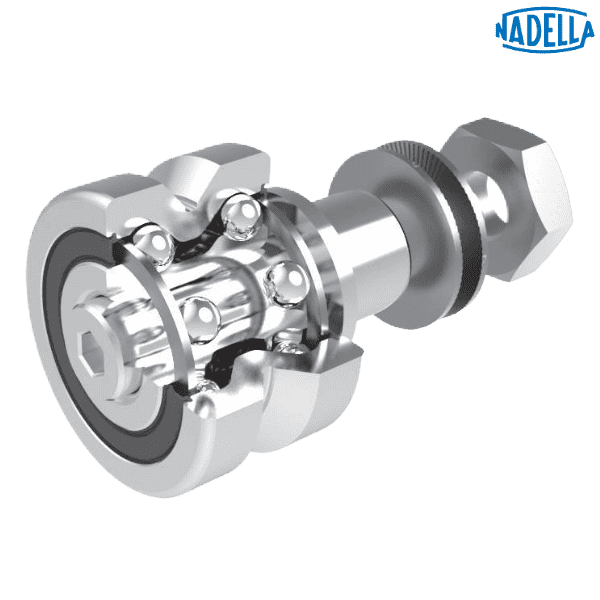

FRLR 40 EU NADELLA

Brand - NADELLA
Item Number - FRLR 40 EU* NADELLA
Category - Floating Guide Rollers with Ball Bearing

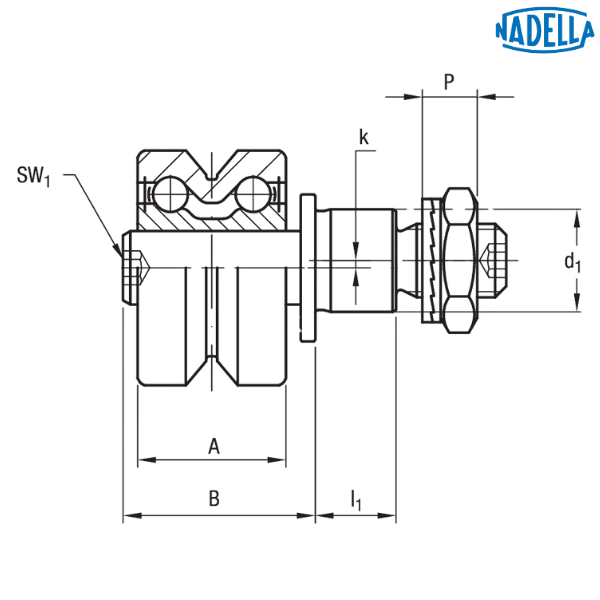

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 40 mm
Dimension (d1) - 16 (H7) mm
Dimension (d) - M12 x 1.5
Dimension (T) - 14.6 mm
Minimum Dimension (S) - 12 mm
Dimension (P) - 10.4 mm
Dimension (L) - 61.4 mm
Dimension (A) - 25 mm
Dimension (B) - 32.4 mm
Dimension (l1) - 11 mm
Dimension (M) - 22 mm
Minimum Dimension (m**) - 14.9 mm
Maximum Dimension (m**) - 19.9 mm
Dimension (SW1) - 5 mm
Dimension (SW2) - 19 mm
Dimension (SW3) - 5 mm
Dimension (k) - 1 mm
Dynamic Load (Cw***) - 8500 N
Radial Limit Load (Fr) - 3000 N
Limit Load Inox Version NX - 2700 N
Torque Wrench Settings**** - 26 Nm
Weight Without fittings - 0.233 kg

Other salient points to be noted:
* Available in stainless steel (NX) version
** To ensure a safe and proper functioning the dimension m must not be higher than m maximum
*** Cw = Basic load for 100 km
**** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• Standard seals: material NBR, RS type
• Guide rollers include self-locking washers and hexagonal nut (DIN 439B)
• Pressure angle α for load calculation: 40°
