FRLR 32 EU NADELLA

Brand - NADELLA
Item Number - FRLR 32 EU* NADELLA
Category - Floating Guide Rollers with Ball Bearing

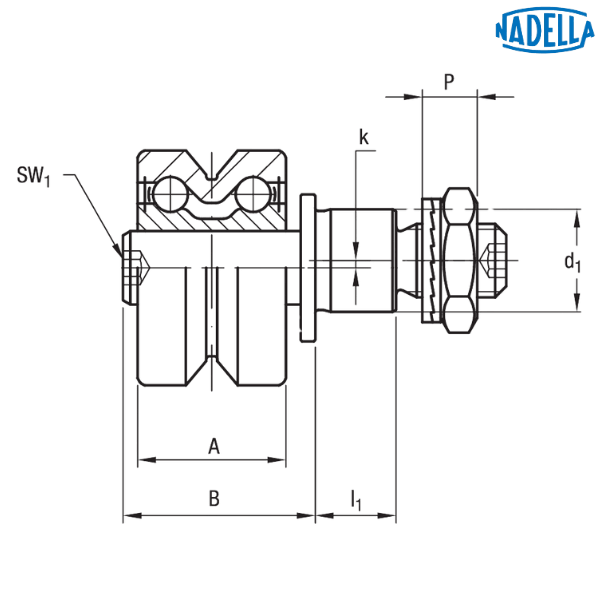

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 32 mm
Dimension (d1) - 14 (H7) mm
Dimension (d) - M10 x 1.25
Dimension (T) - 11.8 mm
Minimum Dimension (S) - 12 mm
Dimension (P) - 8.5 mm
Dimension (L) - 52.2 mm
Dimension (A) - 20.2 mm
Dimension (B) - 26.2 mm
Dimension (l1) - 11 mm
Dimension (M) - 20 mm
Minimum Dimension (m**) - 12.1 mm
Maximum Dimension (m**) - 16.1 mm
Dimension (SW1) - 4 mm
Dimension (SW2) - 17 mm
Dimension (SW3) - 4 mm
Dimension (k) - 1 mm
Dynamic Load (Cw***) - 5800 N
Radial Limit Load (Fr) - 1700 N
Limit Load Inox Version NX - 1500 N
Torque Wrench Settings**** - 20 Nm
Weight Without fittings - 0.127 kg

Other salient points to be noted:
* Available in stainless steel (NX) version
** To ensure a safe and proper functioning the dimension m must not be higher than m maximum
*** Cw = Basic load for 100 km
**** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• Standard seals: material NBR, RS type
• Guide rollers include self-locking washers and hexagonal nut (DIN 439B)
• Pressure angle α for load calculation: 40°
