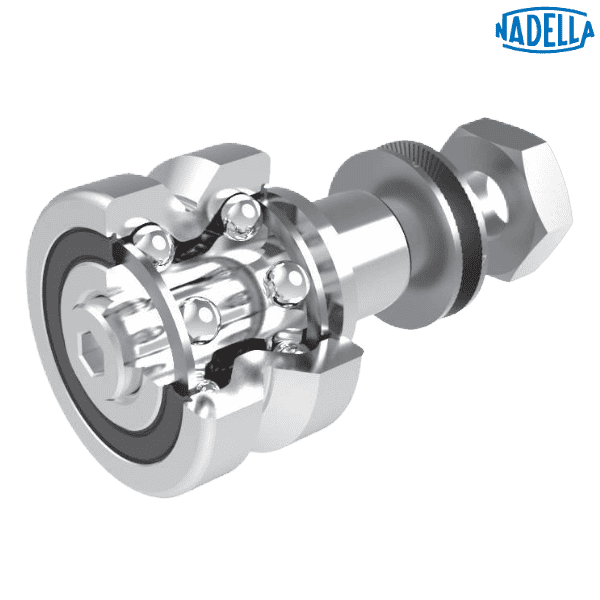

FRLR 22 EU NADELLA

Brand - NADELLA
Item Number - FRLR 22 EU* NADELLA
Category - Floating Guide Rollers with Ball Bearing

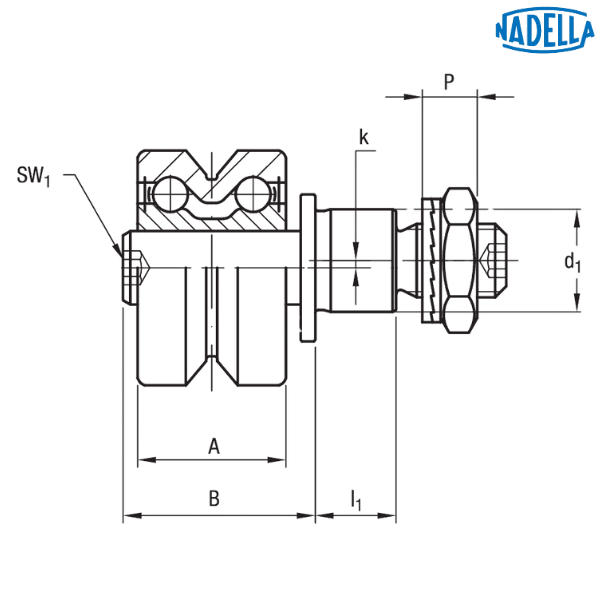

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 22 mm
Dimension (d1) - 9 (H7) mm
Dimension (d) - M6 x 1.0
Dimension (T) - 7.7 mm
Minimum Dimension (S) - 9 mm
Dimension (P) - 6.5 mm
Dimension (L) - 39.3 mm
Dimension (A) - 15 mm
Dimension (B) - 20.5 mm
Dimension (l1) - 8 mm
Dimension (M) - 14 mm
Minimum Dimension (m**) - 9 mm
Maximum Dimension (m**) - 13 mm
Dimension (SW1) - 4 mm
Dimension (SW2) - 10 mm
Dimension (SW3) - 3 mm
Dimension (k) - 0.8 mm
Dynamic Load (Cw***) - 2900 N
Radial Limit Load (Fr) - 1050 N
Limit Load Inox Version NX - 900 N
Torque Wrench Settings**** - 3 Nm
Weight Without fittings - 0.046 kg

Other salient points to be noted:
* Available in stainless steel (NX) version
** To ensure a safe and proper functioning the dimension m must not be higher than m maximum
*** Cw = Basic load for 100 km
**** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• Standard seals: material NBR, RS type
• Guide rollers include self-locking washers and hexagonal nut (DIN 439B)
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
