FRHD 1500 RINGSPANN

Brand - RINGSPANN
Part Number - FRHD 1500 RINGSPANN
Category - Low Speed Backstops FRHD

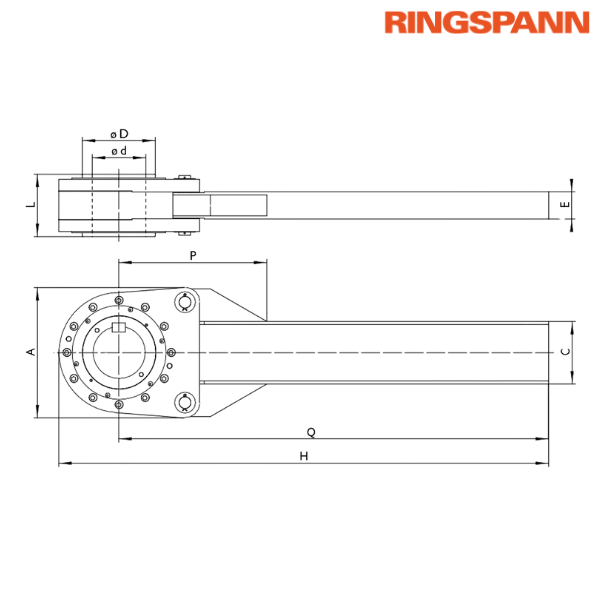

Principal Dimensions & Specifications:
Maximum Bore (d) - 12 inch
Dimension (A) - 31 inch
Dimension (C) - 18 inch
Dimension (D) - 15.13 inch
Dimension (E) - 6.25 inch
Dimension (H) - 107 inch
Dimension (L) - 17.62 inch
Dimension (P) - 36 inch
Dimension (Q) - 94 inch
Weight - 2440 lbs
Weight - 1106.76 kg
Nominal Torque (M_N) - 290000 lb-ft
Maximum Speed Inner Ring Freewheels - 200 RPM

Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Conversion factors: 1 lb-ft = 1.35 Nm, 1 inch = 25.4 mm, 1 lbs = 0.453 kg

Features:

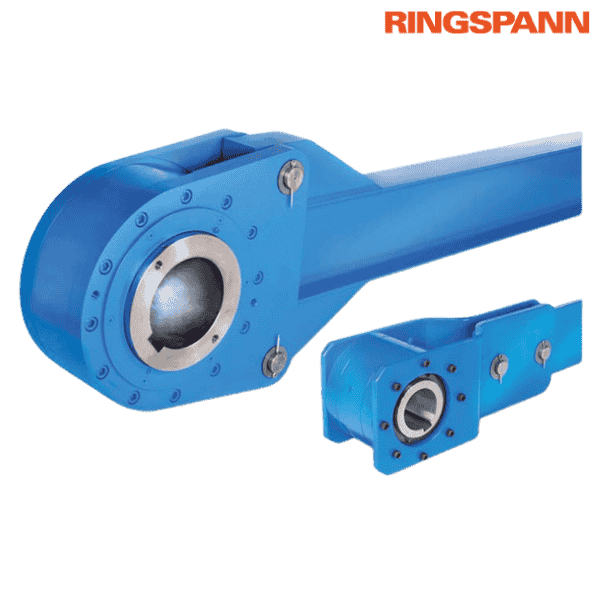

• Low Speed Backstops FRHD with lever arm are sealed sprag freewheels equipped with ball bearings
• Capable of handling nominal torques up to 900,000 lb-ft
• Available with bores up to 21 inches

Application as: Backstop
• Equipped with Taconite seals to protect the freewheels from dust and dirt contamination

Application Example:
• Backstop FRHD 900 is installed on the head drum shaft of an inclined conveyor belt system
• The backdriving torque is supported by the lever arm resting on the base plate

Mounting:
• The lever arm must not be rigidly clamped; it should allow 0.5 inch of play in both axial and radial directions
• The shaft tolerance must comply with ISO h6 or j6
