FR 62 EU NADELLA

Brand - NADELLA
Item Number - FR 62 EU NADELLA

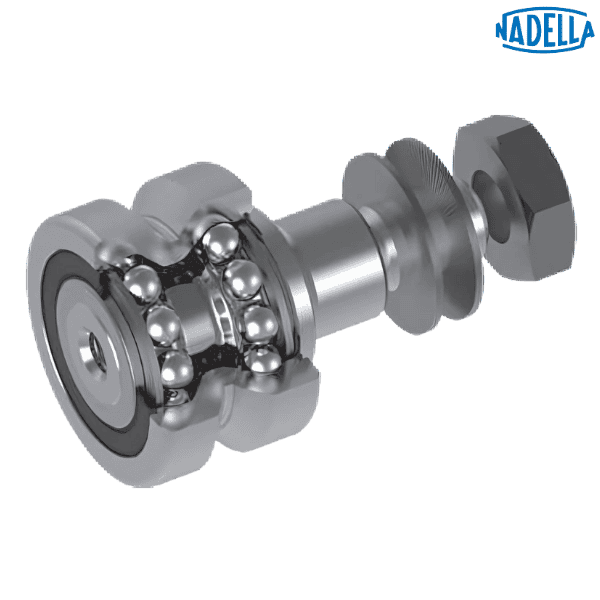

Category - V-Line Guide Roller with Ball Bearing (Concentric)

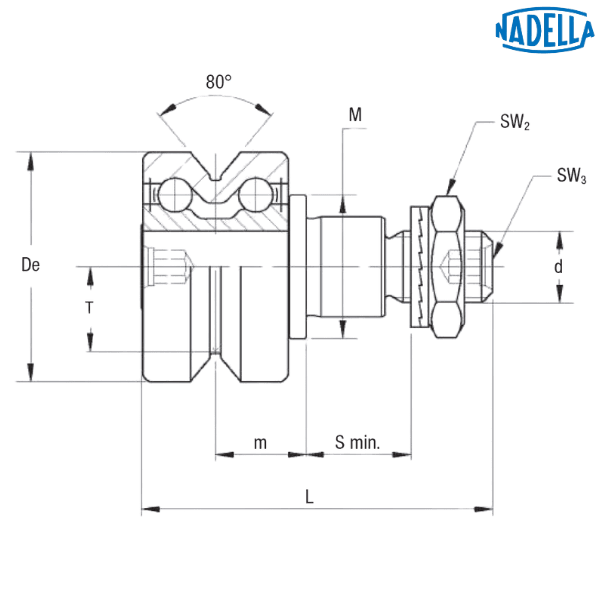

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d1) - 27 (H7) mm
Dimension (d) - M20 x 1.5
Dimension (T) - 22.1 mm
Dimension (m) - 20.8 mm
Minimum Dimension (S) - 18.5 mm
Dimension (P) - 12.4 mm
Dimension (L) - 80 mm
Dimension (A) - 33.6 mm
Dimension (B) - 39 mm
Dimension (I1) - 17.5 mm
Dimension (M) - 35 mm
Dimension (SW1) - 8 mm
Dimension (SW2) - 30 mm
Dimension (SW3) - 8 mm
Dimension (k) - 2 mm
Dynamic Load (Cw**) - 13900 N
Radial Limit Load (Fr) - 11000 N
Axial Limit Load (Fa) - 3500 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Torque Wrench Settings *** - 120 Nm
Weight - 0.765 kg

Description of Suffixes and Prefixes:
FR...EU - Guide roller with ball bearings for FS and FSH rails of V-Line system, and FWS and FWH rails of Base-Line system

Other salient points to be noted:
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 40°
• Standard: NBR seals RS type

♦ ♦ Images are for representation purposes only
