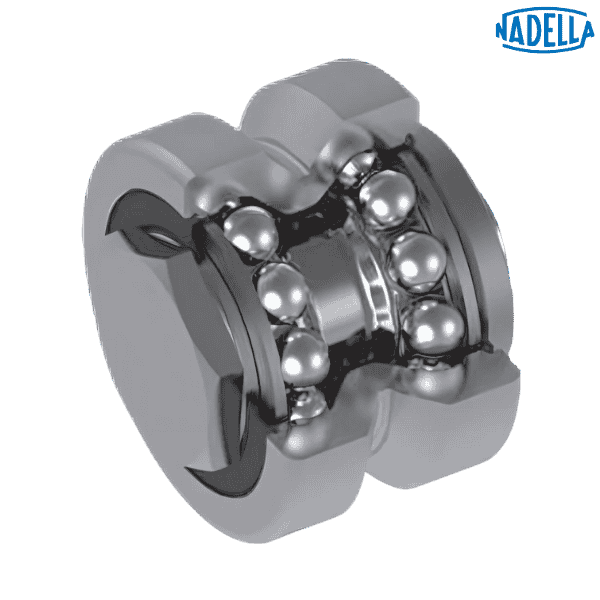

FR 62 EU AS NADELLA

Brand - NADELLA
Item Number - FR 62 EU AS NADELLA
Category - V-Line Guide Roller with Ball Bearing (Concentric)

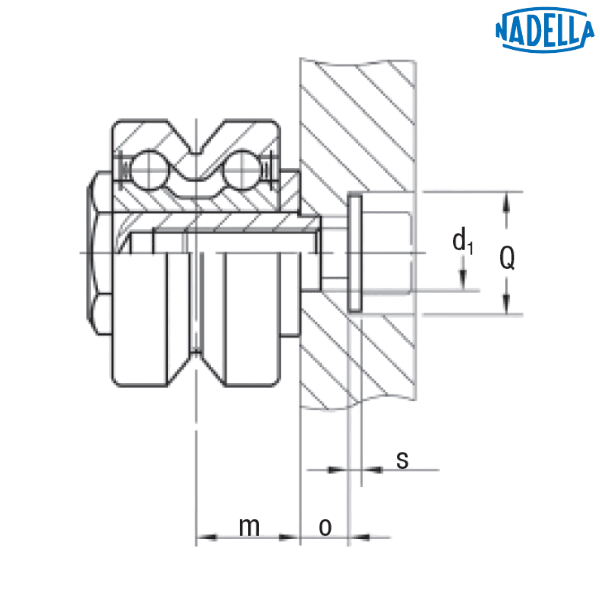

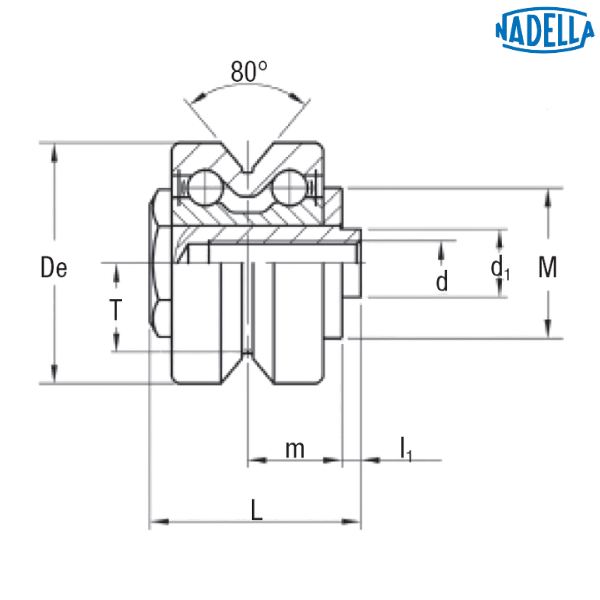

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d1) - 19 (H7) mm
Dimension (d*) - M12
Dimension (T) - 22.1 mm
Dimension (m) - 20.8 mm
Dimension (L) - 46 mm
Dimension (A) - 33.6 mm
Dimension (B) - 41.8 mm
Dimension (l1) - 4.2 mm
Dimension (l) - 4 mm
Dimension (M) - 35 mm
Dimension (SW) - 30 mm
Dimension (o) - 9 mm
Dimension (Q) - 26
Dimension (s) - 2.5***
Dimension (k) - 1.5 mm
Guide Roller Size - 62 mm
Dynamic Load (Cw****) - 13900 N
Radial Limit Load (Fr) - 9200 N
Axial Limit Load (Fa) - 3500 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Weight - 0.582 kg
On Request for AZ Screw DIN 7988 - M16 x 65

Description of Suffixes and Prefixes:
FR...EU - Guide roller with ball bearings for FS and FSH rails of V-Line system, and FWS and FWH rails of Base-Line system

Other salient points to be noted:
*** Guide roller with washers DIN 125 without screw DIN 7984 or DIN 912
**** Cw basic load for 100 km

• NBR seals RS type
• Pressure angle α for load calculation: 40°
