FR 52 EU AZ NADELLA

Brand - NADELLA
Item Number - FR 52 EU AZ NADELLA
Category - V-Line Guide Roller with Ball Bearing (Concentric)

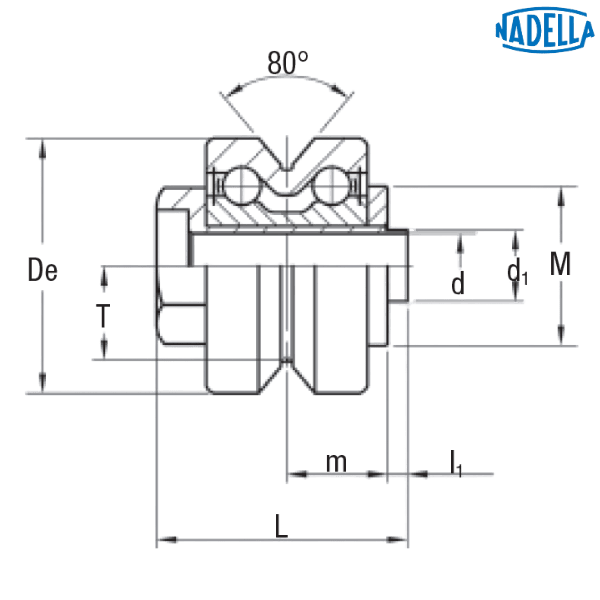

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (d1) - 16 (H7) mm
Dimension (d*) - 14.1 mm
Dimension (T) - 19.1 mm
Dimension (m) - 19.8 mm
Dimension (L) - 49.5 mm
Dimension (A) - 32 mm
Dimension (B) - 46.3 mm
Dimension (l1) - 3.2 mm
Dimension (l) - 3.8 mm
Dimension (h) - 10.5 mm
Dimension (M) - 28 mm
Dimension (SW) - 27 mm
Dimension (G) - 39.3
Dimension (o) - 5.5 mm
Dimension (lg*) - 27 mm
Dimension (k) - 1.5 mm
Guide Roller Size - 52 mm
Dynamic Load (Cw****) - 11700 N
Radial Limit Load (Fr) - 5830 N
Axial Limit Load (Fa) - 2560 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1.9
Weight - 0.365 kg
On Request for AZ Screw DIN 7992 - M14 x 60

Description of Suffixes and Prefixes:
FR...EU - Guide roller with ball bearings for FS and FSH rails of V-Line system, and FWS and FWH rails of Base-Line system

Other salient points to be noted:

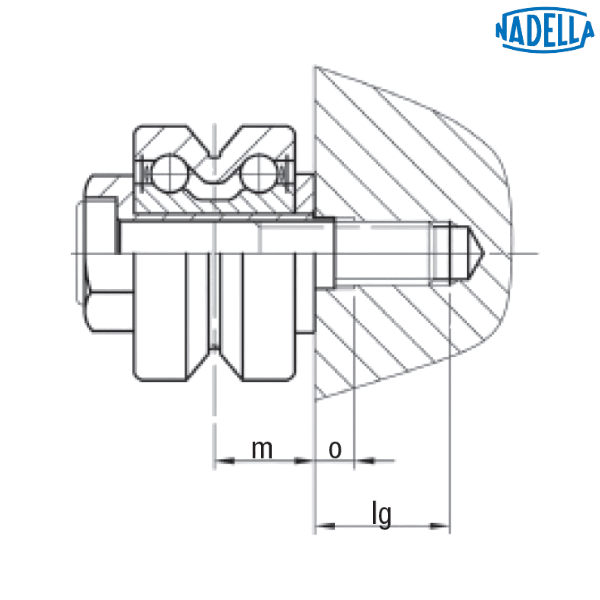

* AZ: minimum length of the thread engaged steel = 1 x d; cast iron = 1.25 x d; aluminium = 2 x d
**** Cw basic load for 100 km

• NBR seals RS type
• Pressure angle α for load calculation: 40°

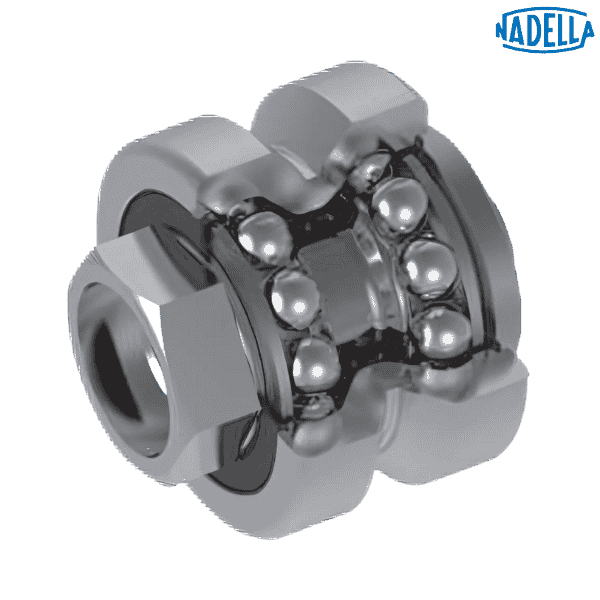

♦ ♦ Images are for representation purposes only
