FR 22 EU AZ NADELLA

Brand - NADELLA
Item Number - FR 22 EU AZ NADELLA
Category - V-Line Guide Roller with Ball Bearing (Concentric)

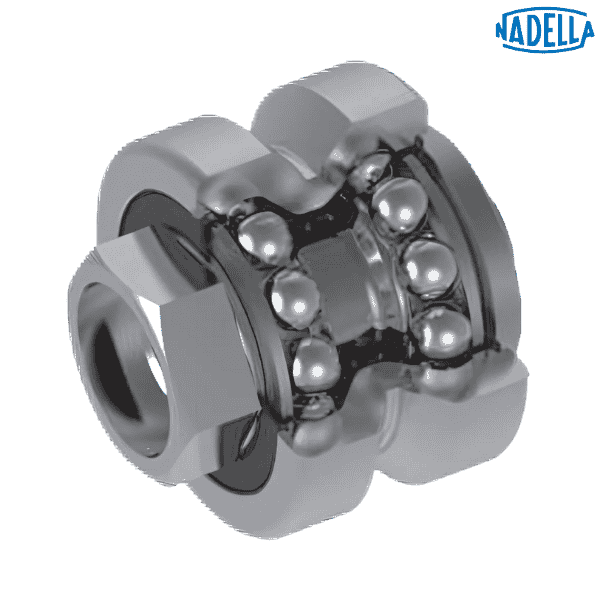

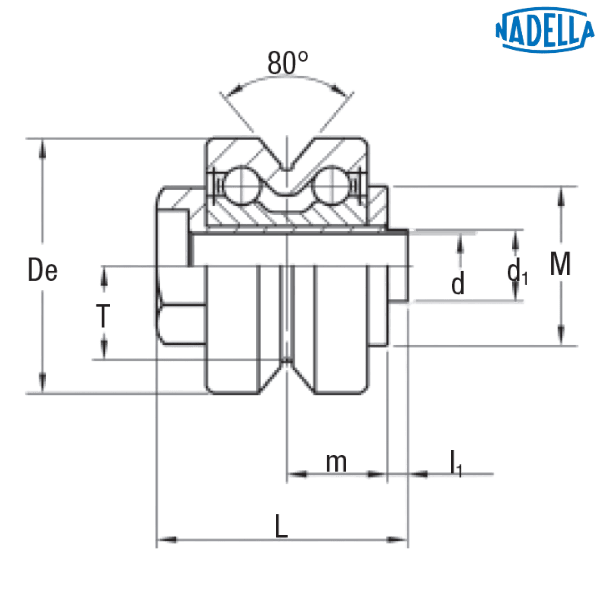

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 22 mm
Dimension (d1) - 6 (H7) mm
Dimension (d*) - 5.1 mm
Dimension (T) - 7.7 mm
Dimension (m) - 9.4 mm
Dimension (L) - 23.9 mm
Dimension (A) - 15 mm
Dimension (B) - 21.9 mm
Dimension (l1) - 2 mm
Dimension (l) - 1.9 mm
Dimension (h) - 5 mm
Dimension (M) - 14 mm
Dimension (SW) - 11 mm
Dimension (G) - 18.9
Dimension (o) - 4 mm
Dimension (lg*) - 13 mm
Dimension (k) - 0.5 mm
Guide Roller Size - 22 mm
Dynamic Load (Cw****) - 2900 N
Radial Limit Load (Fr) - 470 N
Axial Limit Load (Fa) - 210 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 2
Weight - 0.031 kg

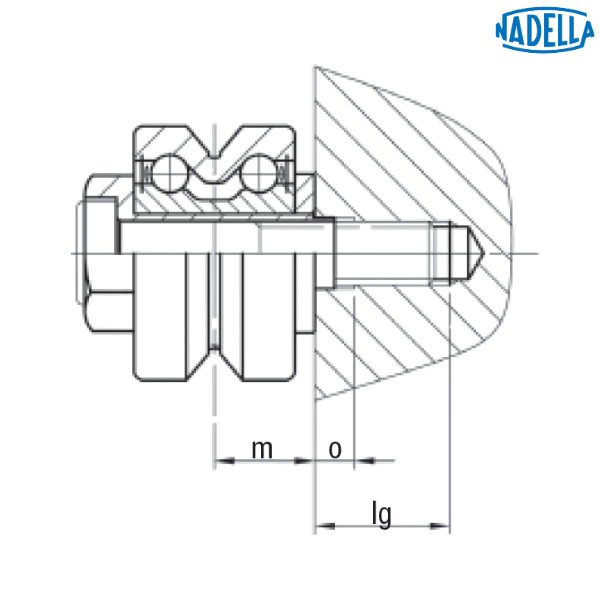

On Request for AZ Screw DIN 7989 - M5 x 30

Description of Suffixes and Prefixes:
FR...EU - Guide roller with ball bearings for FS and FSH rails of V-Line system, and FWS and FWH rails of Base-Line system

Other salient points to be noted:
* AZ: minimum length of the thread engaged steel = 1 x d; cast iron = 1.25 x d; aluminium = 2 x d
**** Cw basic load for 100 km

• This Part Number is available in stainless steel (NX)
• FR 22 EUNX: VAC for high vacuum applications on request
• NBR seals RS type
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
