FPL 415 NADELLA

Brand - NADELLA
Item Number - FPL 415 NADELLA
Category - Small Cam Rollers Without Stud With Cylindrical Outer Ring
Also Known As - FPL415

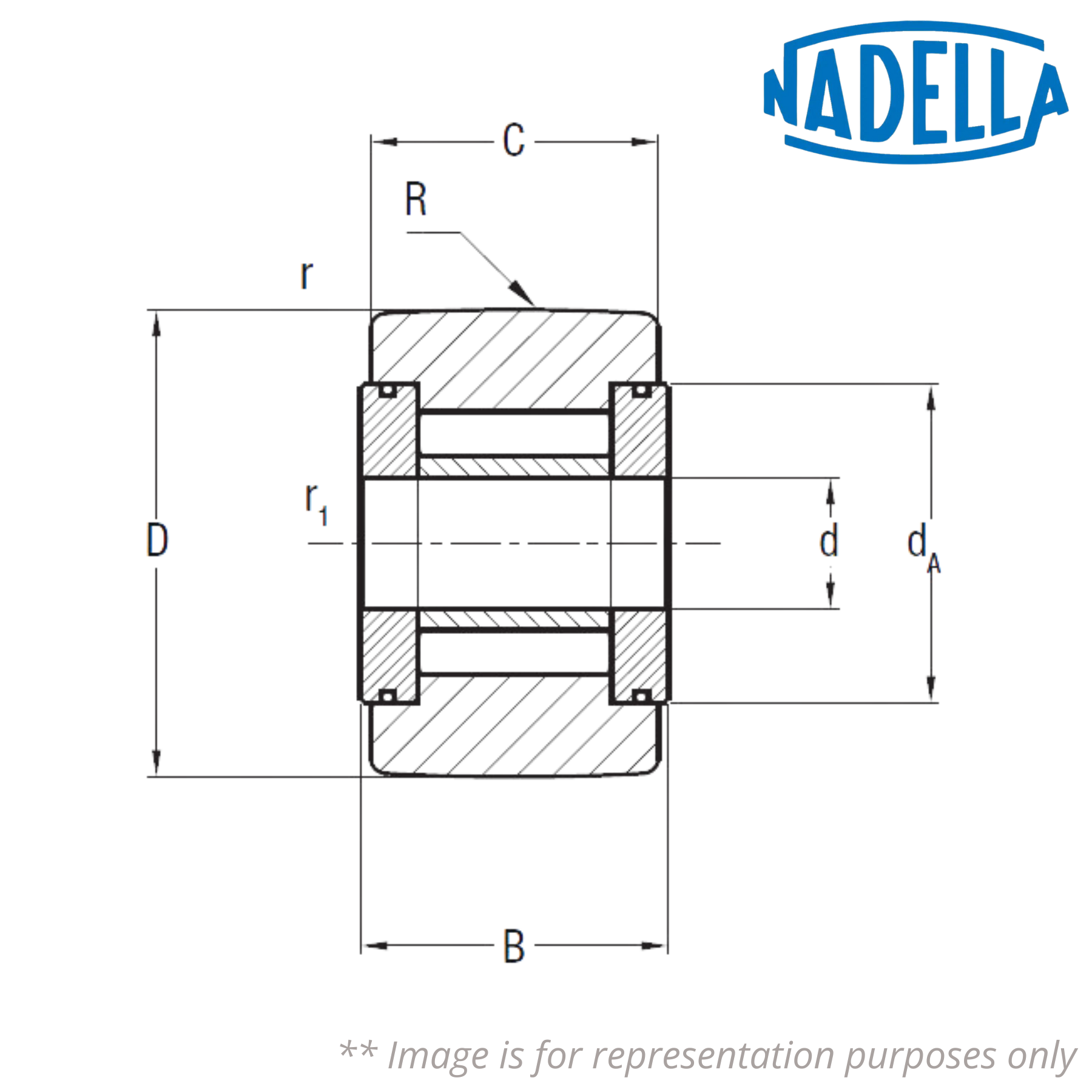

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 15 mm
Diameter of the Pivot to Insert in the Recommended Hole (d) - 4 mm
Dimension (B) - 10.2 mm
Dimension (C) - 9 mm
Dimension (dA) - 11.8 mm
Dimension (r) - 0.3 mm
Dimension (r1) - 0.15 mm
Load Coefficient (Cw) - 3300 N
Dynamic Load Coefficient (Fr) - 3900 N
Static Load Coefficient (For) - 3900 N
Speed Limit with Grease - 6800 RPM
Weight - 0.011 kg

Description of Prefix:
FPL - Outer cylindrical ring

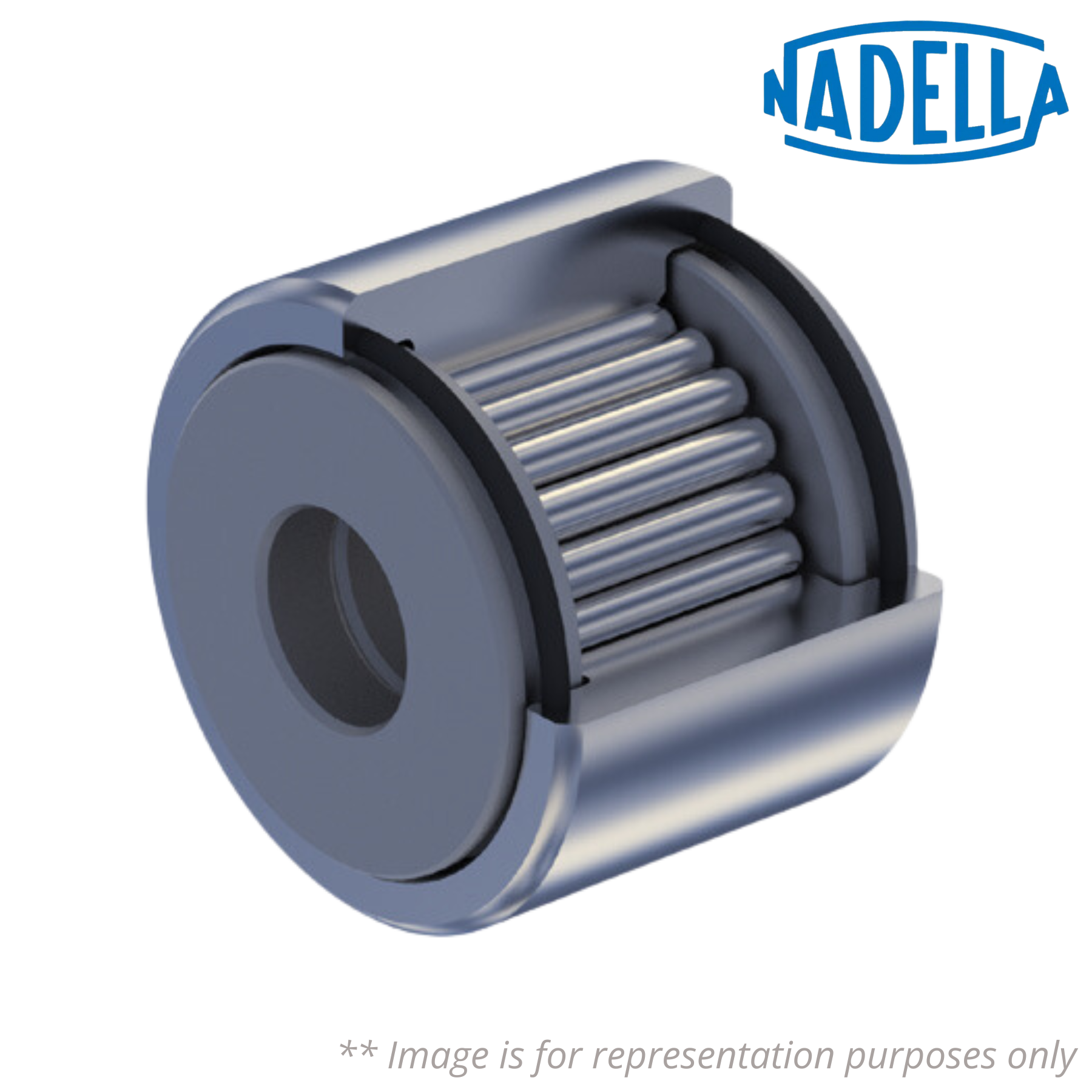

♦♦ Images are for representation purposes only
