FPL 311 NADELLA

Brand - NADELLA
Item Number - FPL 311 NADELLA

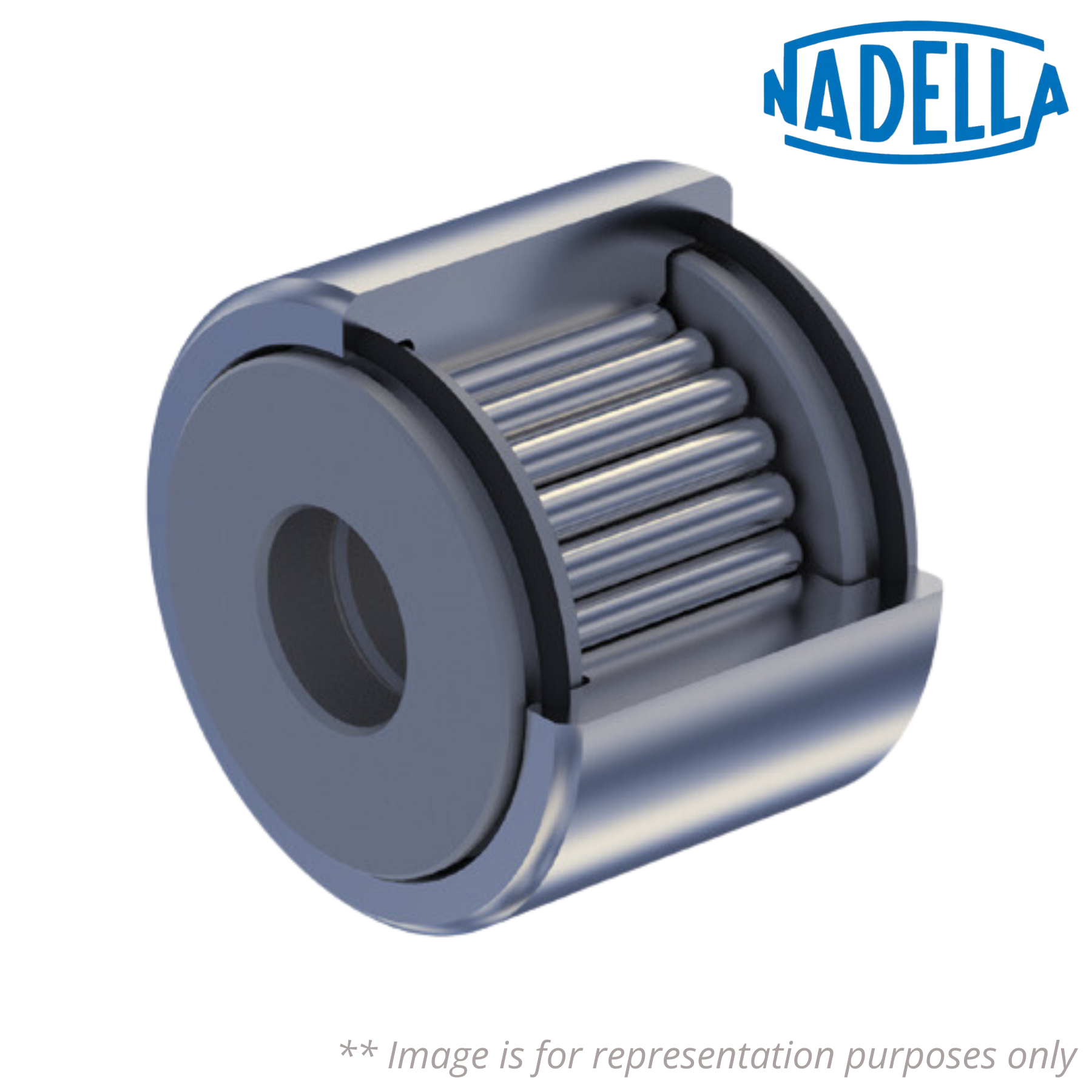

Category - Small Cam Rollers Without Stud With Cylindrical Outer Ring
Also Known As - FPL311

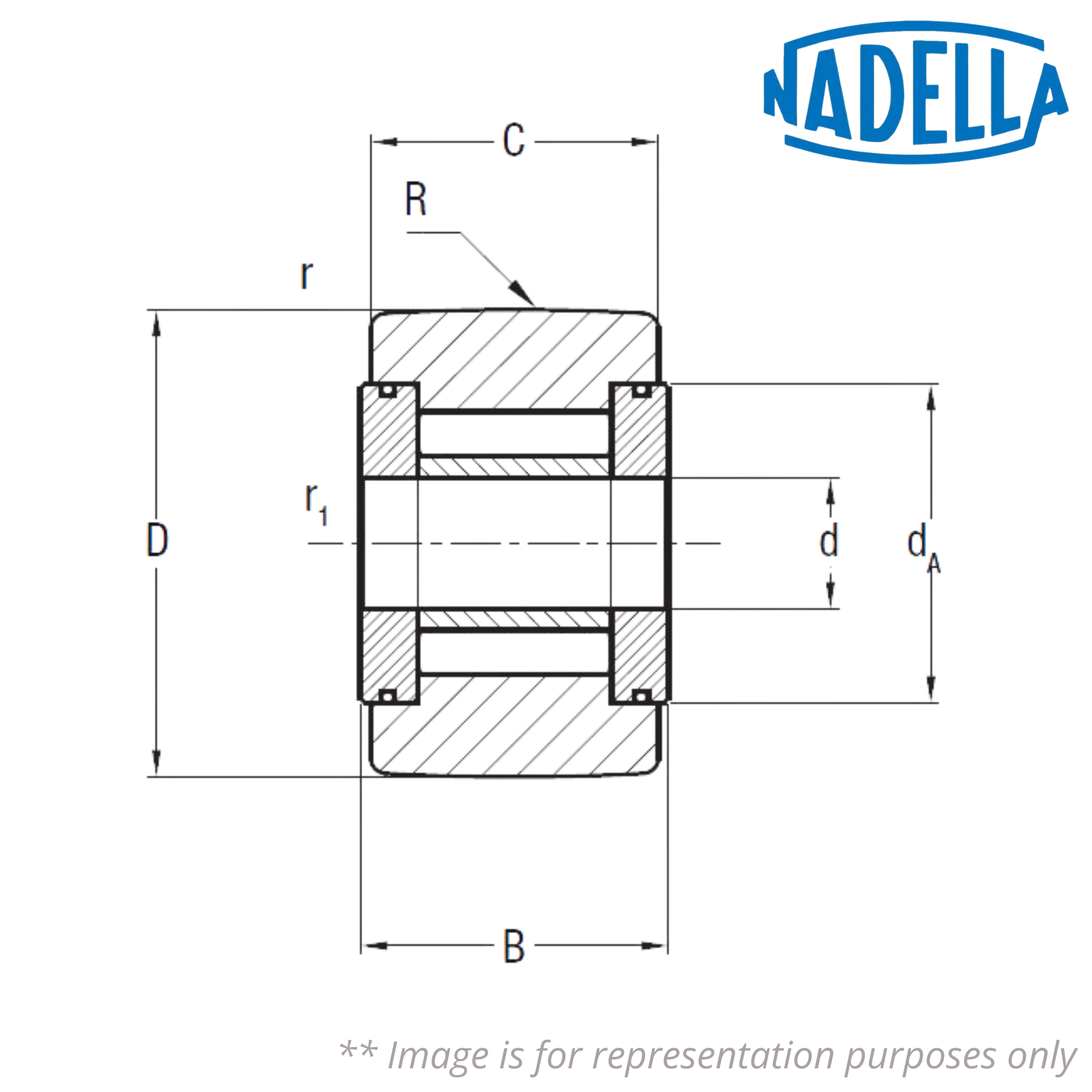

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 11 mm
Diameter of the Pivot to Insert in the Recommended Hole (d) - 3 mm
Dimension (B) - 8.7 mm
Dimension (C) - 8 mm
Dimension (dA) - 8.5 mm
Dimension (r) - 0.2 mm
Dimension (r1) - 0.15 mm
Load Coefficient (Cw) - 2300 N
Dynamic Load Coefficient (Fr) - 2300 N
Static Load Coefficient (For) - 2300 N
Speed Limit with Grease - 8200 RPM
Weight - 0.005 kg

Description of Prefix:
FPL - Outer cylindrical ring

♦♦ Images are for representation purposes only
