Description
Brand - NADELLA
Item Number - FP 414 NADELLA
Category - Small Cam Rollers Without Stud With Crowned Outer Ring
Also Known As - FP414

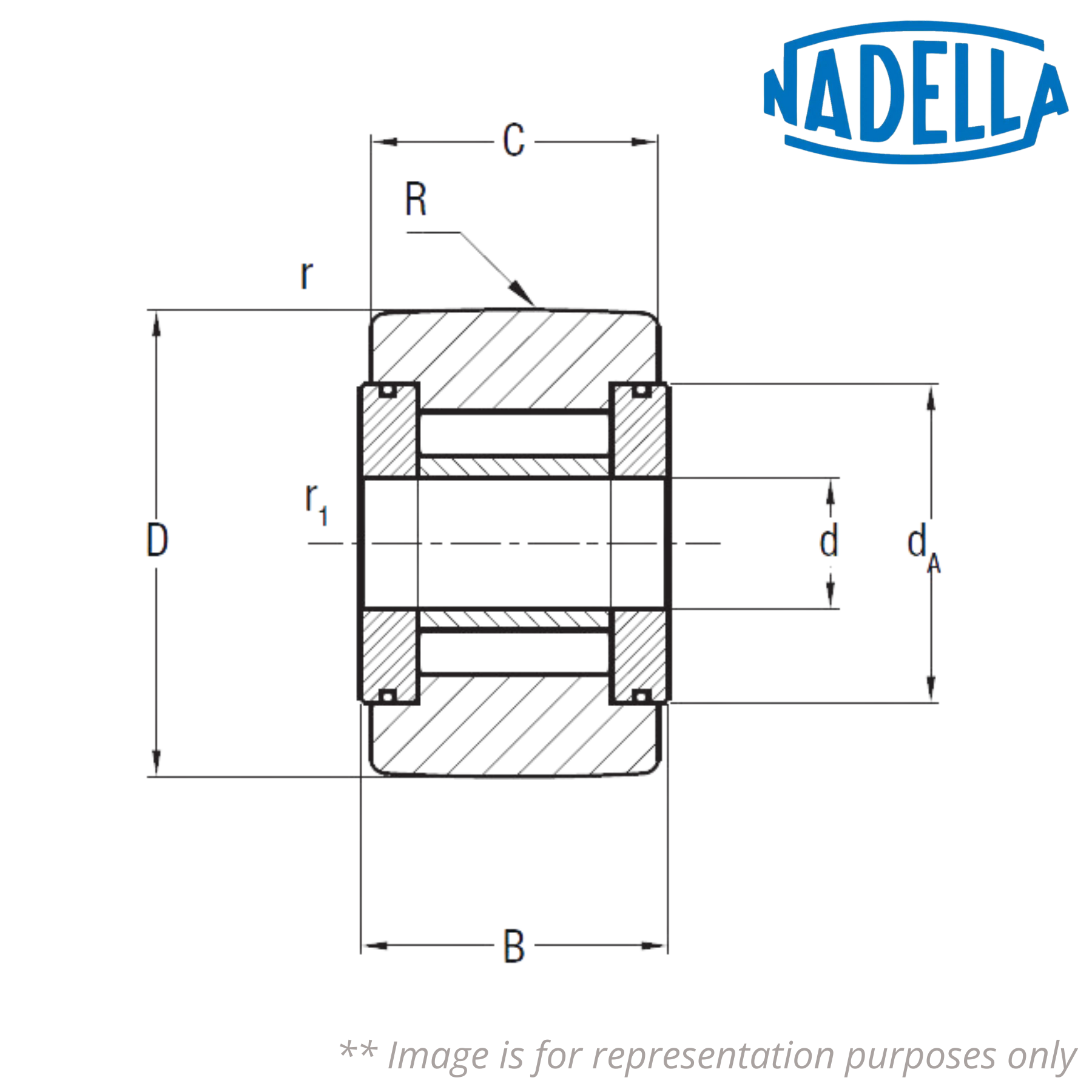

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 14 mm
Diameter of the Pivot to Insert in the Recommended Hole (d) - 4 mm
Dimension (B) - 10.2 mm
Dimension (C) - 9 mm
Dimension (dA) - 11.8 mm
Dimension (r) - 0.3 mm
Dimension (r1) - 0.15 mm
Convex Radius (R) * - 130 mm
Load Coefficient (Cw) - 3300 N
Dynamic Load Coefficient (Fr) - 3900 N
Static Load Coefficient (For) - 3900 N
Speed Limit with Grease - 6800 RPM
Weight - 0.01 kg
Description of Prefix:
FP - Outer convex ring
Other salient points to be noted:
* Version FP convex radius

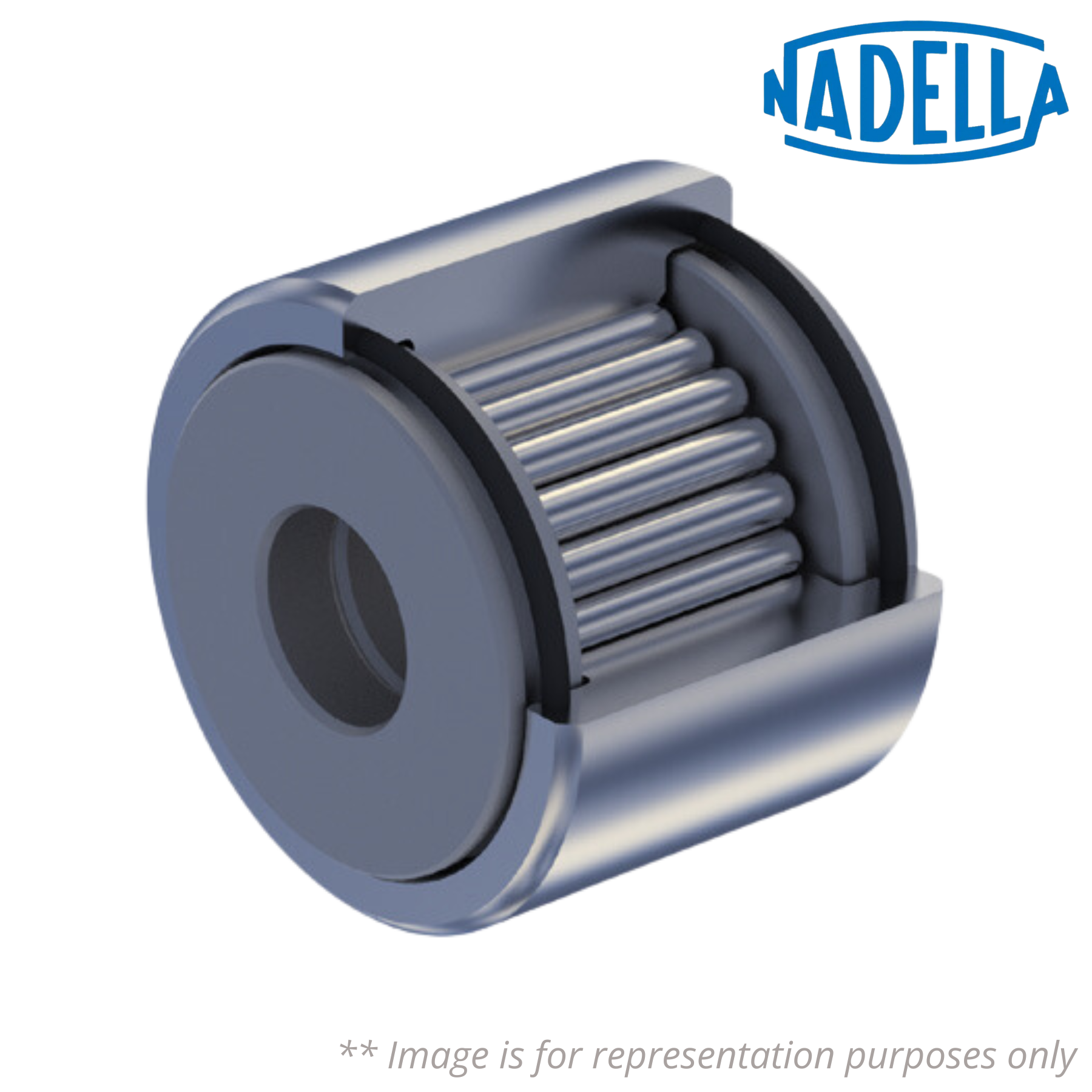

♦♦ Images are for representation purposes only
