Description
Brand - NADELLA
Item Number - FP 310 NADELLA
Category - Small Cam Rollers Without Stud With Crowned Outer Ring
Also Known As - FP310

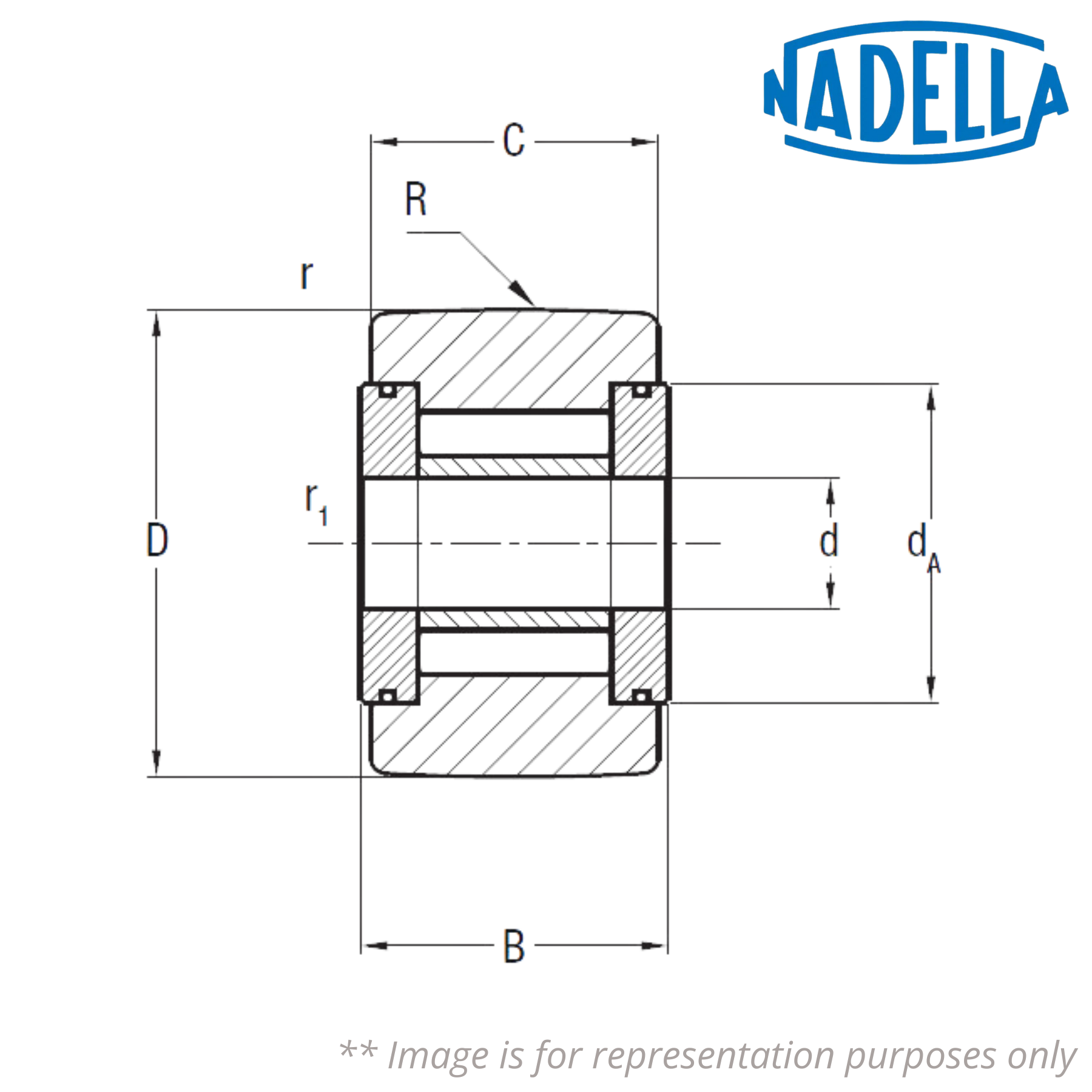

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 10 mm
Diameter of the Pivot to Insert in the Recommended Hole (d) - 3 mm
Dimension (B) - 8.7 mm
Dimension (C) - 8 mm
Dimension (dA) - 8.5 mm
Dimension (r) - 0.2 mm
Dimension (r1) - 0.15 mm
Convex Radius (R) * - 130 mm
Load Coefficient (Cw) - 2200 N
Dynamic Load Coefficient (Fr) - 2200 N
Static Load Coefficient (For) - 2200 N
Speed Limit with Grease - 8200 RPM
Weight - 0.004 kg
Description of Prefix:
FP - Outer convex ring
Other salient points to be noted:
* Version FP convex radius

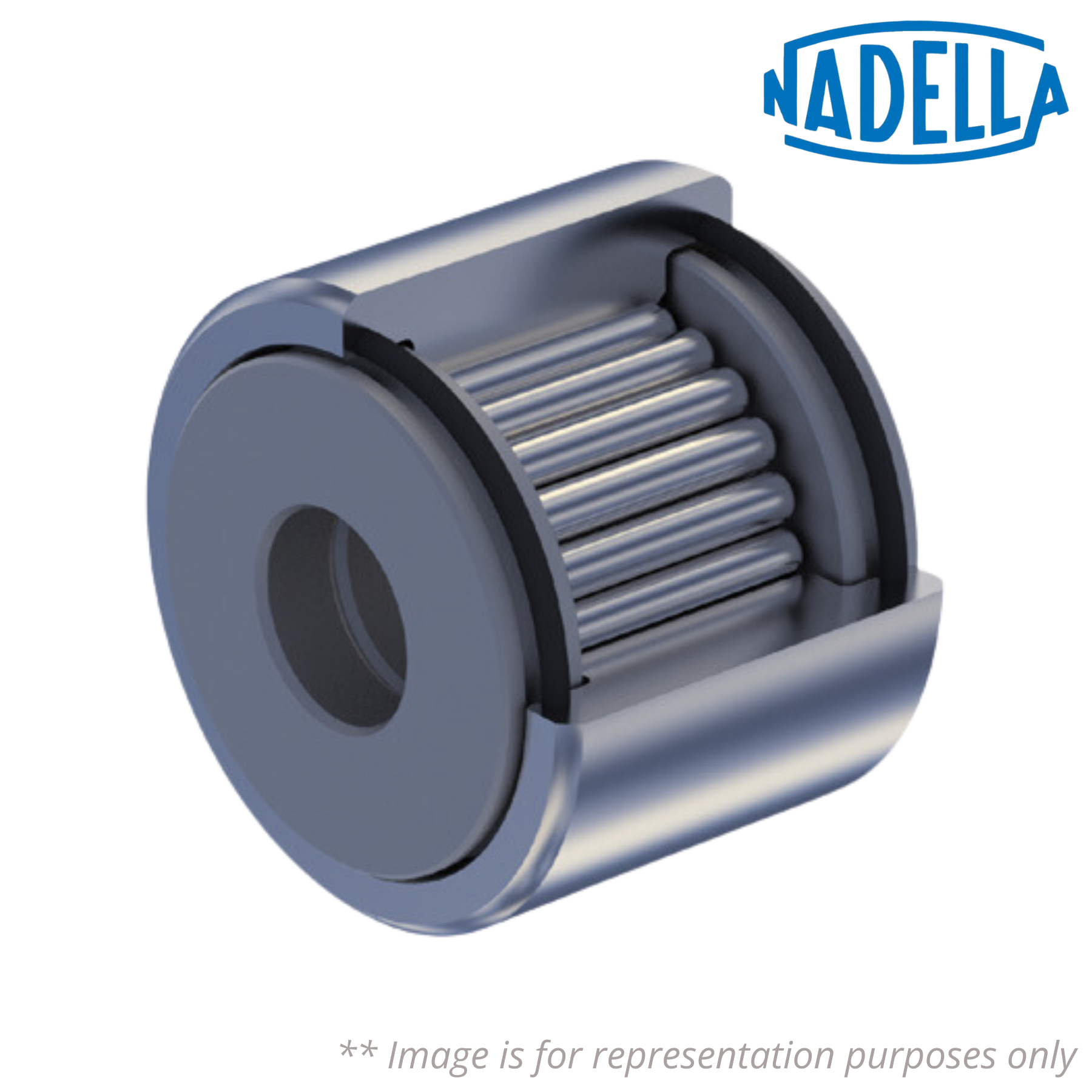

♦♦ Images are for representation purposes only
