Description
Brand - RINGSPANN
Part Number - FN 30 RINGSPANN
Category - Internal Freewheels FN
Principal Dimensions & Specifications (Metric):
Nominal Torque (MN) - 410 Nm
Maximum Speed Inner Ring Freewheels/Overruns - 1400 RPM
Maximum Speed Outer Ring Freewheels/Overruns - 3050 RPM

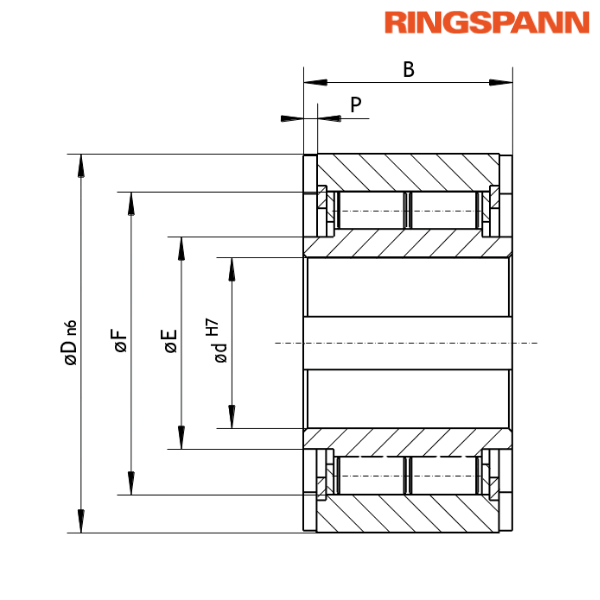

Bore Diameter (d) - 30 mm
Dimension (B) - 48 mm
Dimension (D) - 90 mm
Dimension (E) - 45 mm
Dimension (F) - 75 mm

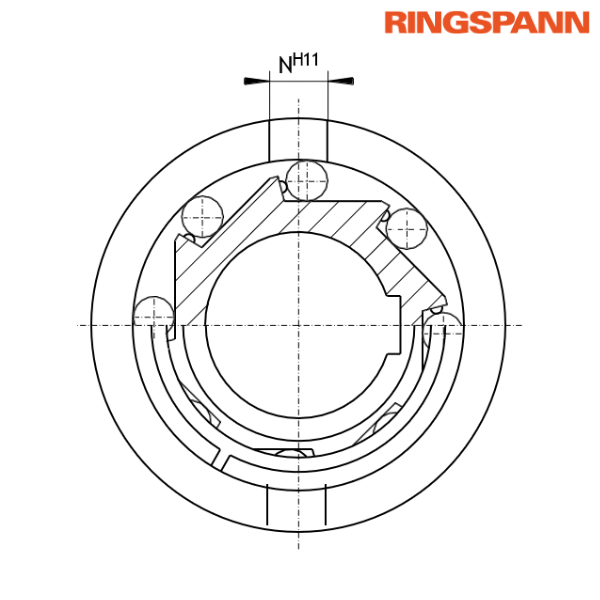

Dimension (N) - 12 mm
Dimension (P) - 5 mm
Weight - 1.6 kg
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• An oil lubrication of the specified quality must be provided
• Keyway connection on the outer ring with rollers
• Keyway according to DIN 6885
Features:

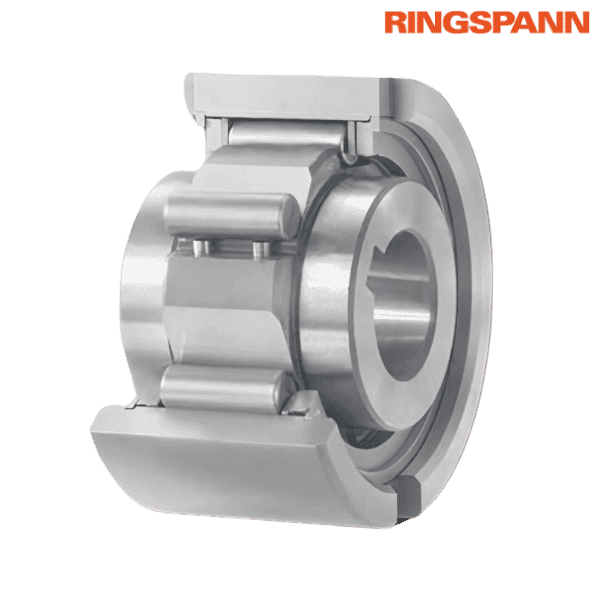

• Internal Freewheels FN are roller freewheels supplied without bearing support
• The freewheel is designed to be integrated into the customer housing, enabling compact and space-saving installation
• Capable of handling nominal torques up to 3,000 Nm
• Both faces of the outer ring are equipped with grooves for effective torque transmission
• Available with bores up to 60 mm
Application as: Backstop, Overrunning Clutch, Indexing Freewheel
Application Example:
• Internal Freewheel FN 20 is used as a backstop on the drive shaft of the running gears of a chain conveyor
• During normal operation, the drive shaft powers the system while the freewheel operates in freewheeling mode
• The freewheel functions as a backstop, preventing the running gears from rolling backward uncontrollably in the event of a fault or power failure
Mounting:
• Internal Freewheels FN are supplied without bearing support
• The customer must ensure concentric alignment of both the inner ring and outer ring
• The housing bore tolerance (D) must conform to ISO H7 or G7 standards
• The shaft tolerance must comply with ISO h6 or j6
• The outer ring must be completely enclosed within a rigid, stable housing to safely transmit the specified torques
Lubrication:
• An oil lubrication of the specified quality must be provided
♦ ♦ Images are for representation purposes only
