Description

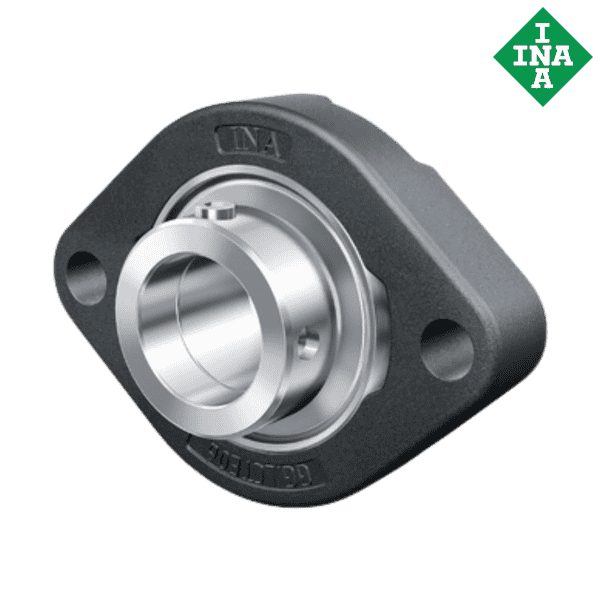

Brand - INA
Item Number - FLCTE25 INA
Category - Flanged Housing Unit
Also known as - (FYTF25FM) , (RAE25NPPB+LCTE05) , (YET205+FYTF505)

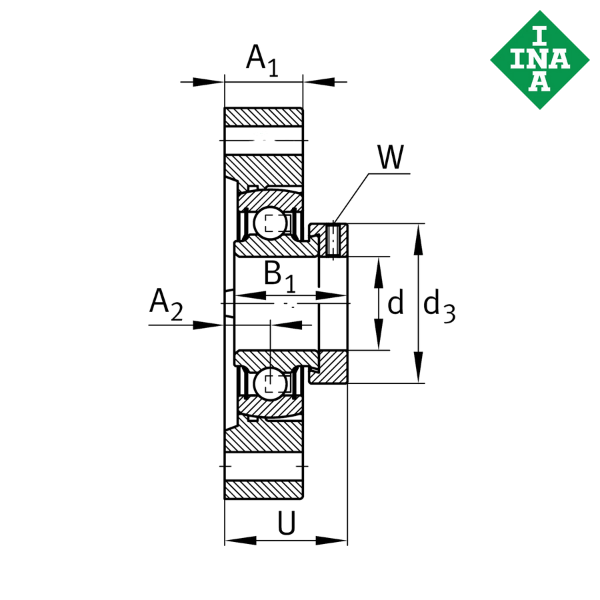

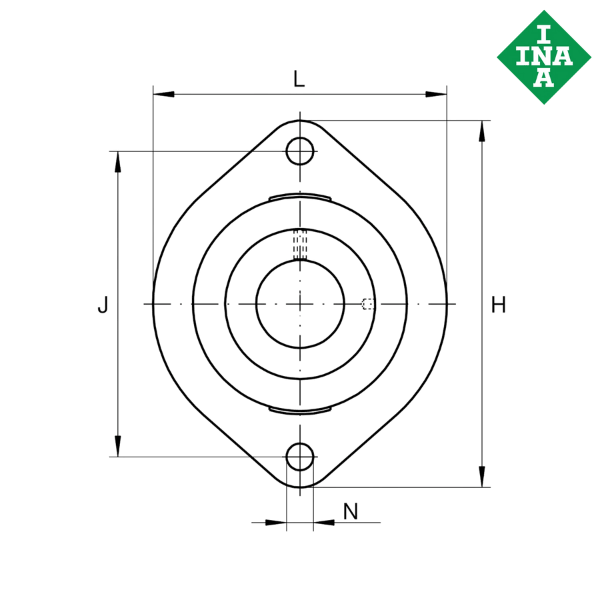

Inner (d) MM - 25
Outer (D) MM - 71
Width (B) MM - 34.5
Inner (d) Inch - 0.9843
Outer (D) Inch - 2.7953
Width (B) Inch - 1.3583
Weight (kg) - 0.47
Seal - 2F - Standard Seal for Y-bearings
Lubrication - Standard Lubrication
Special Treatment - No Special Treatment
** Images are for representation purposes only
