Description
Brand - INA
Item Number - FLCTE1.1/4 INA
Category - Flanged Housing Unit
Inner (d) MM - 31.75
Outer (D) MM - 84
Width (B) MM - 38.5
Inner (d) Inch - 1.25
Outer (D) Inch - 3.3071
Width (B) Inch - 1.5157
Seal - 2F - Standard Seal for Y-bearings
Lubrication - Standard Lubrication
Special Treatment - No Special Treatment

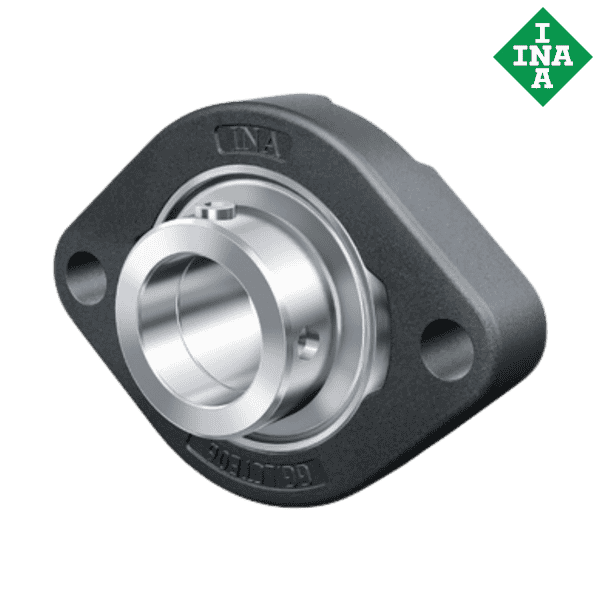

** Images are for representation purposes only
